Hdpe Trenchless Pipe - China

HDPE Trenchless Pipe

The PE trenchless pipe was originated in the 1970’s and was introduced into China in the 1990’s.

Currently, it is widely used for the field of pipelines’ construction, such as water supply, drainage, electricity and communication pipe.

Also, it is widely applied in the field of pipeline restoration, protection of cultural relic and ancient buildings, and so on.

HDPE Siphon Pipe, HDPE Drainage Pipe, HDPE Corrugated Pipe, HDPE Trenchless Pipe, HDPE Water Supply Pipe, HDPE GSHP pipe, HDPE Pipe Fittings Factory.

Detailed Information:

Specification

Outside diameter Straight series S16 S12.5

DN(mm) Tolerance(mm) Thickness(mm) PN(mpa) Thickness(mm) PN(mpa)

32 +0.3

0 - - 3.0 1.3

40 +0.4

0 - - 3.0 1.1

50 +0.5

0 - - 3.0 0.8

63 +0.6

0 - - 3.0 0.7

75 +0.7

0 - - 3.0 0.5

90 +0.8

0 - - 3.5 0.5

110 +0.8

0 - - 4.2 0.5

125 +0.9

0 - - 4.8 0.5

160 +1.0

0 - - 6.2 0.5

200 +1.1

0 6.2 0.4 7.7 0.5

250 +1.3

0 7.8 0.4 9.6 0.5

315 +1.5

0 9.8 0.4 12.1 0.5

Outside diameter Coil series Length: m/roll S16 DN(mm) Tolerance(mm) Thickness(mm) PN(mpa) 32 +1.4

0 3.0 1.3 50, 100, 200, 300, 500 40 +1.5

0 3.0 1.1 50 +1.6

0 3.0 0.8 50, 100, 200

63 +1.7

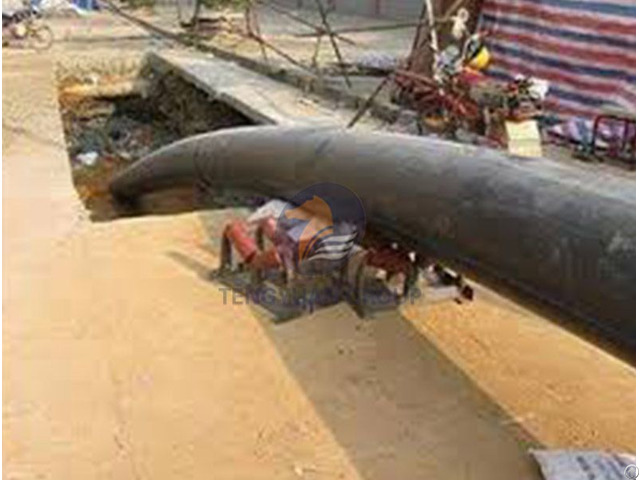

0 3.0 0.7 50, 100 Trenchless through pipe installation Adopting the underlying digging pipe laying and pipe jacking machine pipe laying technology.

Tengyuan export dredge pipeline floats, dredge hoses, Polyethylene Pipe, HDPE Dredging Pipe, Drain Pipe Fittings, Poly Pipe, Floating Pipe, HDPE Pipe Floats and HDPE flange, etc.

We trust and respect each other with our customers, employees, suppliers and other stakeholders.

Features:

1 - Introducing the measurement and control for pipeline’s track.

2 - Greatly increased the pipe laying ability (200 meters in length and 3 meters in diameter).

3 - Fast and efficient.

4 - Improve the ability of construction in complex underlying conditions.

5 - Making it possible for in-situ remediation of the old pipe.

Application:

Suitable for laying PE pipes is not more than 3000mm in diameter are adopted.
