Hdpe Siphon Pipe - China
price: contact company for price

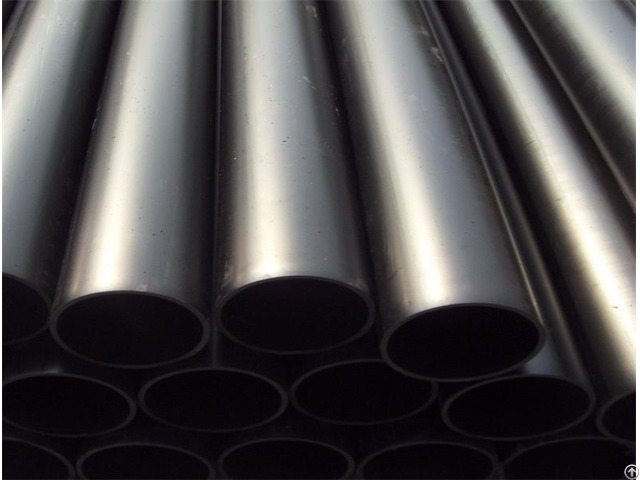

HDPE Siphon Pipe
Siphon rainwater drainage system is a new technology which is developed very fast in Europe, American, Japan, South-American, Asia and Africa countries.
It is a more scientific and advanced technology, can be used on big construction building like factory, workshop, warehouse and public building.
The inner drainage system has obviously advantages comparing with the traditional gravity current drainage system.
HDPE Siphon Pipe, HDPE Drainage Pipe, HDPE Corrugated Pipe, HDPE Trenchless Pipe, HDPE Water Supply Pipe, HDPE GSHP pipe, HDPE Pipe Fittings Factory.
Specification
Straight Series
Nominal Diameter S16 S25
DN
(mm) Tolerance (mm) Wall Thickness (mm) PN
(Mpa) Wall Thickness
(mm) PN
(Mpa)
32 +0.3 — — 3.0 1.3
40 +0.4 — — 3.0 1.1
50 +0.5 — — 3.0 0.8
63 +0.6 — — 3.0 0.7
75 +0.7 — — 3.0 0.5
90 +0.8 — — 3.5 0.5
110 +0.8 — — 4.2 0.5
125 +0.9 — — 4.8 0.5
160 +1.0 — — 6.2 0.5
200 +1.1 6.2 0.4 7.7 0.5
250 +1.3 7.8 0.4 9.6 0.5
315 +1.5 9.8 0.4 12.1 0.5
Coil Series
Nominal Diameter S16 Length: M/Roll
DN
(mm) Tolerance
(mm) Wall Thickness
(mm) PN
(Mpa) 32 +1.4 3.0 1.3 50, 100, 200, 300, 500
40 +1.5 3.0 1.1 50 +1.6 3.0 0.8 50, 100, 200
63 +1.7 3.0 0.7 50, 100 Properties
Project Requirement
Longitudinal reversion(110℃) ≤3% No delamination, cracking and blistering
MFR
(5kg, 190℃)/(g/10min) 0.2≤MFR≤1.1
The MFR difference between the raw material particles should not exceed 0.2
Oxidation induction time
(200℃/min) ≥20
Hydrostatic strength test
(80℃, 165h, 4.6Mpa) No broken, no leakage
Ring stiffness (KN/m3)
Only for the pipes with a “BD” represents SR≥4
Combustion toxicity index ≤1 System Composition
The siphon drainage system is mainly composed of rainwater head, fastening systems, HDPE pipe and the corresponding design
software.
Tengyuan can supply municipal engineering pipe, dredging engineering pipe, HDPE Gas Pipe, Power Engineering Pipe, Mining Pipe and agriculture irrigation pipe, etc.
Integrity is the foundation of us, as well as the guarantee for enterprise's sustainable development.
System Advantages
Compared with the traditional gravity drainage system, the siphon drainage system has advantages as follows:
1 - None-slope pipe.
2 - Less material used.
3 - The construction cost is greatly reduced.
4 - Reducing the requirement of pipes’ diameter.
5 - Save installation space.
6 - The pipe has its self-cleaning function.
7 - The design and installation is simple and quick.
8 - Widely applicable to various buildings.
Features:
1 - UV resistance, ageing resistance, long service life of 50 years.
2 - Smooth inner wall and tiny frictional resistance.
3 - The pressure loss is about 30% less than the steel tube, so smaller diameter of HDPE pipe could be chose.
4 - Health performance is good.
No additives and no possibility of pollution of drinking water, ISO standard grading polyethylene material
level is0 (the lowest)and no mildew material.
Compared with some other commonly used plastic material, PE is much mildew resistance and it could be used for a long time without fouling.
5 - PE pipe can be welded to be an organic whole system.
Company Contact:
- Phone: +865333178656
- Address: Mengshan Technological Zone, Lanshan District, Linyi , Shangdong , China
- Email:
- Website: https://www.tengyuanpipes.com/
Published date: December 11, 2018
- Business Description: Shandong Tengyuan Building Materials Technology Co., Ltd is committed to improving the efficiency and safety of fluid delivery, realizing a healthier and more wonderful world.
Our mission and vision is aiming to be a global trusted and century-old enterprise which views innovation as the driving force of sustainable development and creates value for society, customers, shareholders, employees.
We are located in Jixi Industrial Park, Lanshan district, Linyi city, Shandong province.
Its registered capital is USD 18 million, building area covering more than 60, 000 square meters.
At present, there are more than 390 employees, among which 36 are professional technician, 12 are engineers, 4 are senior engineers.
Now we have more than 60 sets of international top-class PE pipe production lines(ranging from DN20mm to DN1800mm), such as Battenfeld, KraussMaffei and so on, more than 90 sets of injection molding machines and various auxiliary equipments.
We owns anti-static spraying for PE pipe fittings and many other patent technologies.
Our annual production capability is 100, 000 tons of plastic pipe and 6, 000 tons of pipe fittings.
We are a high-tech enterprise collecting R&D, production and marketing, which has two subordinate holding companies of Shandong Tengyuan Plastic Co., LTD and Shandong Federal Plastic Co., LTD, five production bases in Shandong province, Hebei province, Liaoning province, Gansu province and Hunan province respectively, covering an area of 200, 000 square meters.
Currently, our main products contain 6 systems of municipal engineering, gas engineering, dredging engineering, mining engineering, agricultural irrigation, electricity engineering, more than 20 series of HDPE water supply pipes, HDPE dredging pipes, HDPE gas pipes, HDPE flame-retardant & antistatic mining pipes, HDPE GSHP pipes, HDPE siphon drainage pipes, HDPE pipe fittings, MPP electrical conduits and so on and more than 6000 specifications.
