Hdpe Pipe For Drawing Out Methane - China

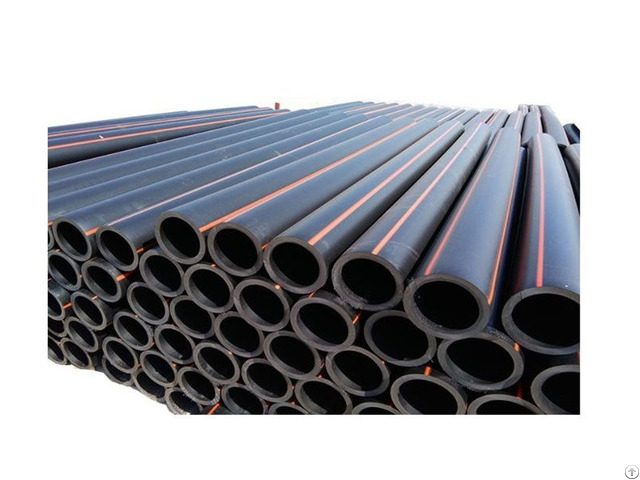

HDPE Pipe for Drawing Out Methane

Tengyuan HDPE mining pipes are made of special polyethylene-based raw materials with flame-retardant and anti-static properties.

And all of the pipes are produced by advanced production equipments through extruding technique at high temperature.

We arrange production and inspection in accordance with national coal industry standard MT588.1-2005 (the first part of plastic mining pipe: PE pipe), MT181-88 "safety inspection specification of plastic mining pipes" and AQ1071-2009 "safety technical requirements for non-metallic gas transmission mining pipe" .

We obtain the coal mine safety signs (MA)for polyethylene mining pipes.

Looking for HDPE mining tailing pipe, HDPE Pipe for Drawing Out Methane, Mining Pipe and HDPE steel mesh reinforced pipe? We views innovation as the driving force of sustainable development and creates value for society, customers, shareholders, employees.

Detailed Information:

Specification

DN(mm) Wall Thickness (mm) 0.6Mpa 0.8Mpa 1.0Mpa 1.25Mpa 1.6Mpa

32 — — — — 3.0

40 — — — — 3.7

50 — — — — 4.6

63 — — — 4.7 5.8

75 — — 4.5 5.6 6.8

90 — 4.3 5.4 6.7 8.2

110 4.2 5.3 6.6 8.1 10.0

125 4.8 6.0 7.4 9.2 11.4

140 5.4 6.7 8.3 10.3 12.7

160 6.2 7.7 9.5 11.8 14.6

180 6.9 8.6 10.7 13.3 16.4

200 7.7 9.6 11.9 14.7 18.2

225 8.6 10.8 13.4 16.6 20.5

250 9.6 11.9 14.8 18.4 22.7

280 10.7 13.4 16.6 20.6 25.4

315 12.1 15.0 18.7 23.2 28.6

355 13.6 16.9 21.1 26.1 32.2

400 15.3 19.1 23.7 29.1 36.3

450 17.2 21.5 26.7 33.1 40.9

500 19.1 23.9 29.7 36.8 45.4

560 21.4 26.7 33.2 41.2 50.8

630 24.1 30.0 37.4 46.3 57.2

710 27.2 33.9 42.1 52.2 —

800 30.6 38.1 47.4 58.8 —

Carried Standard：MT558.1-2004 - Properties

Project Unit Experimental conditions Indicators

Percentage elongation at break % ≥300

Anti-hydraulic strength MPE80 20℃, 100h, 9.0Mpa No broken MPE100 20℃, 100h, 12.4Mpa No broken

Antistatic properties NH-VV22 The average of the outer surface resistivity Ω 23℃, 65%

Relative humidity ≤1.0x109 The average positive pressure ventilation surface resistance, spray tube inside and outside Ω 23℃, 65%

Relative humidity ≤1.0x108 The average gas pipe surface resistance Ω 23℃, 65%

Relative humidity ≤1.0x106 The average surface resistance tube Ω 23℃, 65%

Relative humidity ≤1.0x106 Retardant properties 3+1, 3+2, 4+1

Alcohol lamp burning time

3+1, 3+2, 4+1 S Flame height: 150mm

Temperature: 960℃ Flaming combustion

1 pc≤10s, 6 pcs≤18s S Flame height: 150mm

Temperature: 960℃ Flameless combustion

1 pc≤60s, 6 pcs≤120s Features

Flame-retardant and anti-static.

It is suitable for the specific places which are flammable and explosive.

Great anti-aging and anti-cracking performance.

High strength and impact resistance, superior mechanical properties.

Highly polished surface of pipe wall, low fluid resistance, up to 30% higher in conveying capacity.

Highly water tightness and environmentally friendly.

Light weight, long life span and convenient installation.

Application:

The products are widely used as coal mine’s water supply and drainage pipe, mining positive and negative pressure ventilation pipe, mining spray pipe, mining gas drainage pipe and so on.
