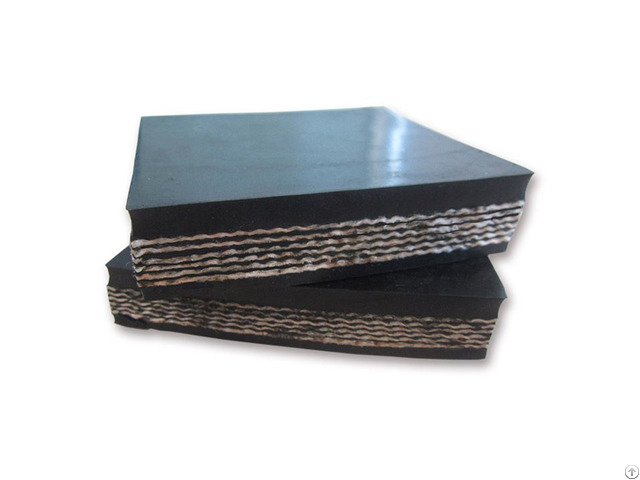

Ep Nylon Conveyor Belt - China

Ep Nylon Conveyor Belt, Mining Industries Conveyor Belt, Metallurgy Conveyor Belt Wholesaler

1 - Applications

EP/nylon conveyor belt is suitable for transporting lump, granular, powdery materials of normal temperature, non-corrosion in general conditions.

It is widely used in metallurgy, construction materials, wharf, mining industries.

2 - Physical Properties of Rubber Cover (before aging)

Grade Tensile Strength/Mpa ≥ Breaking Elongation/% ≥ Abrasion Loss/mm3 ≤

H 24 450 120

D 18 400 100

L 15 350 200

Note:

Grade H-used for transporting sharp, abrasive materials which can damage belts badly.

Grade D-used for transporting highly abrasive materials.

Grade L-used for transporting medium-abrasion materials.

After-aging properties of rubber cover(70℃, 7days):

Tensile strength and breaking elongation are both not lower than 75% of before-aging values.

3 - Full-thickness Tensile Properties

a.

Longitudinal tensile strength, not less than the below table.

(N/mm)

Nominal belt type 160 200 250 315 400 500 630 800 1000 1250 1600 2000 2500 3150

b.

Full thickness, longitudinal elongation at reference force, not more than 4%.

c.

Ply adhesion:

Item Ply to ply Rubber cover to ply Rubber cover thickness ≤1.5mm Rubber cover thickness >1.5mm

All samples average value/ (N/mm) ≥ 4.5 3.2 3.5

All samples min peak value/ (N/mm) ≥ 3.9 2.4 2.9

Note: All samples max peak value is not more than 20N/mm.

d.

Straightness not more than 25mm

Huayue started business by producing rubber belts since 1982 - It has been one of Solid Woven Convey or Belts manufacturers and is the major factory of fabric conveyor belt and Steel Cord Conveyor Belt in China.

Company Contact:

• Posted By: Baoding Huayue Rubber Belts Co., Ltd.

• Phone: +863123912064

• Address: Boye County Economic Development Zone, baoding , Hebei , China

• Email:

• Business Description: Baoding Huayue Rubber Belts Co., Ltd started business by producing rubber belts since 1982 - It has been one of top 10 conveyor belts manufacturers and is the major factory of fabric conveyor belt in China.

  It covers an area of about 180666㎡ including building area 26666㎡.

  There are more than 300 staffs in our company.

  Registered capital is 200 million CNY, and annual production capacity is 30 million square meters.

  It has a complete R&D center and Testing Center.

  Our main products include steel cord conveyor belt, EP, Nylon conveyor belt, PVC PVG solid woven fire resistant conveyor belt.

  Anti-tear and fire resistant steel cord conveyor belt, more than 200 subclass types and sizes.

  Our Products:

  - ep nylon conveyor belt

  - fire resistant fabric conveyor belt

  - heat resistant fabric conveyor belt

  - oil resistant fabric conveyor belt

  - cold resistant fabric conveyor belt
