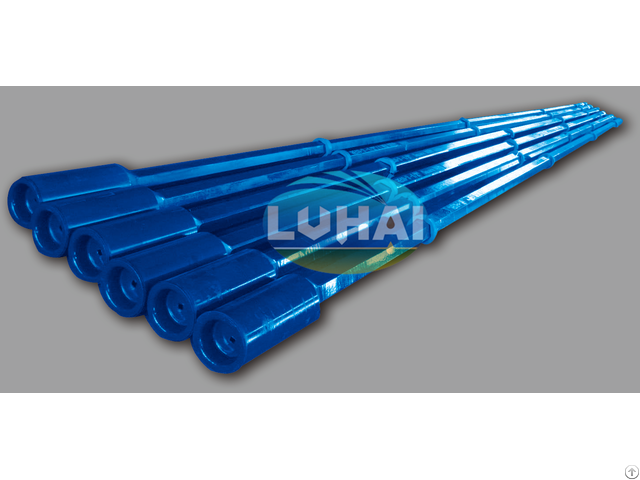

Drill Kelly For Drilling Operations - China

LUHAI provides square Kelly and hexagonal Kelly which is manufactured strictly according to API Spec7-1 and SY/T6509-2000 standard.

Description & Specification:

Size: full range from 2-1/2 to 6

Material: AISI 4145H alloy steel

Standard: API SPEC 7-1, SY/T6509-2000.

Size(in) Top Connection(LH) Bottom Connection I.D. (in) Drive Section (in)

Standard O.D.(in) Optional O.D.(in) Square O.D.(in) Hex.

O.D.(in) Square Hex.

A B

2-1/2 6-5/8REG 7-3/4 4-1/2REG 5-3/4 NC26 85.7 1-1/4 3-2/7

3 6-5/8 REG 7-3/4 4-1/2REG 5-3/4 NC31 4-1/8 NC26 3-3/8 1-3/4 1-1/4 4 3-3/8

3-1/2 6-5/8 REG 7-3/4 4-1/2REG 5-3/4 NC38 4-3/4 NC31 4-1/8 2-1/4 1-3/4 4-1/2 4

4-1/4 6-5/8REG 7-3/4 4-1/2REG 5-3/4 NC46 6-1/4 NC38 4-3/4 2-4/5 2-1/4 5-4/7 4-4/5

6-5/8 REG 7-3/4 4-1/2REG 5-3/4 NC50 6-3/8 NC38 4-3/4 2-4/5 2-1/4 5-4/7 4-4/5

5-1/4 6-5/8 REG 7-3/4 5-1/2FH 7 NC46 6-1/4 3-1/4 3 7 6

6-5/8 REG 7-3/4 NC56 7 NC50 6-3/8 3-1/4 3-1/4 7 6

6 6-5/8 REG 7-3/4 5-1/2FH 7 3-1/2 6-4/5

6-5/8 REG 7-3/4 NC56 7 3-1/2 6-4/5
