Api 5b 2 7 8 Nue N80 Psl1 Regular Tubing Coupling - China

API 5B 2-7/8 NUE PSL1 Regular Tubing Coupling

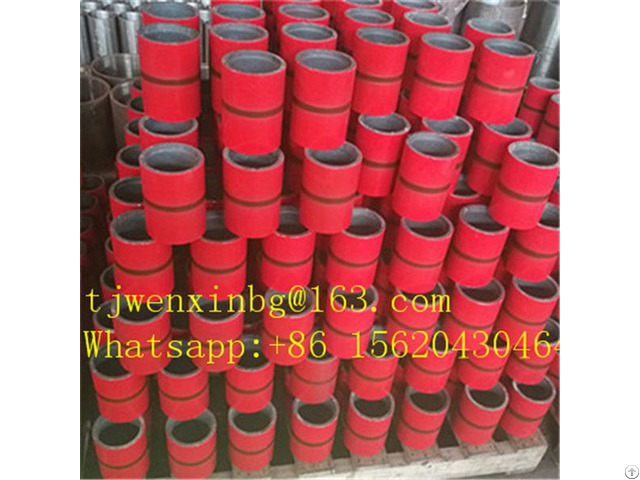

Introduction NUE Thread Couplings are short lengths of pipe used to connect 2 joints of tubing.

They come with painted colour codes on their external surface to indicate their grades.

Couplings are manufactured according to API 5CT and 5B specifications.

Specification

Size 1.050”~4-1/2”

Material Grade J55 K55 N80 L80 P110 Q125 L80-9Cr L80-13Cr

Thread Type NUE

Product Description

Size Outside Diameter(mm) Weight(kg)

1.050” 33.35 0.23

1.315” 42.16 0.38

1.660” 52.17 0.59

1.900” 55.88 0.56

2-3/8” 73.02 1.28

2-7/8” 88.90 2.34

3-1/2” 107.95 3.71

4” 120.65 4.35

4-1/2” 132.08 4.89

Main Feature

1 - High Precision in Size and shape

2 - Good corrosion resistance

3 - High collapse strength

4 - Excellent comprehensive mechanical properties

5 - High connection strength and salability

6 - Constant mechanical properties at high temperature

Advantage

1 - Full-set quality control

2 - Strict quality inspection

3 - Tight Tolerances

4 - Technology Support

5 - As international standard

6 - Good quality and prompt delivery

Package&Delivery

Packade In Fumigation-free wooden cases, Wooden pallet packaging

Delivery Within 15-75 days(Based on actual quantity)

Shippment By sea, By air
