Type Tspo Transparent Stainless Steel Helix And Polyester Fiber Braid Reinforced Silicone Hose - China

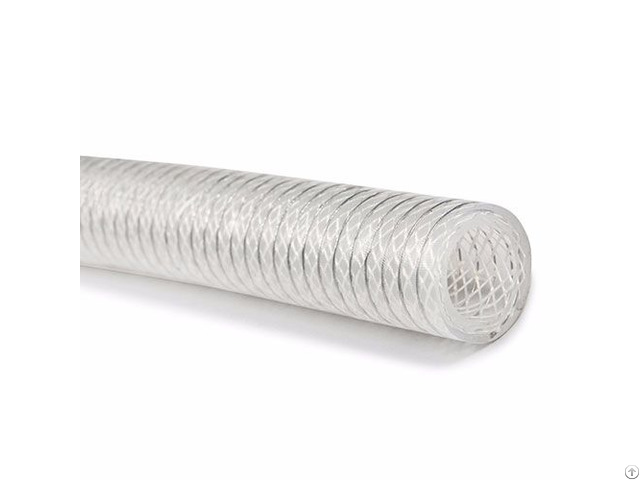

Transparent Stainless Steel Helix and Polyester Fiber Braid Reinforced Silicone Hose

Construction: Type TSPO is manufactured from High purity platinum cured Silicone with single stainless steel helix and polyester fiber reinforcement.

Temp.

Range: -60°C and 180°C.

(+260°C on request) Colour: Transparent (Coloured covers available) Smooth inner and outer surface to resist material adhesion Silicone hoses suitable for pressure and vacuum.

Suitable for CIP and SIP cleaning

Odourless, Tasteless, Non-Toxic

Certification: FDA, USP, BFR, USDA, ISO 10993

Length: Standard length is 6 or 10 meters.

** PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.

Part no.

ID OD Bending radius Work pressure Bursting pressure Vacuum in.

mm mm mm bar bar bar

TSPO005 3/16" 4.8 11 25 18 54 0.91

TSPO006 1/4" 6.4 13 38 17 51 0.91

TSPO008 5/16" 7.9 15 45 15 45 0.91

TSPO010 3/8" 9.5 17 57 14 42 0.91

TSPO013 1/2" 12.7 22 70 11 33 0.91

TSPO016 5/8" 15.9 25 80 10 30 0.91

TSPO019 3/4" 19 31 95 7 21 0.91

TSPO022 7/8" 22 34.5 145 6.5 19.5 0.91

TSPO025 1" 25.4 38 160 6 18 0.91

TSPO032 1-1/4" 32 46 200 5 15 0.91
