Type Gf Glass Fiber Braid Reinforced Silicone Hose - China
price: 50.00 Dollar US$

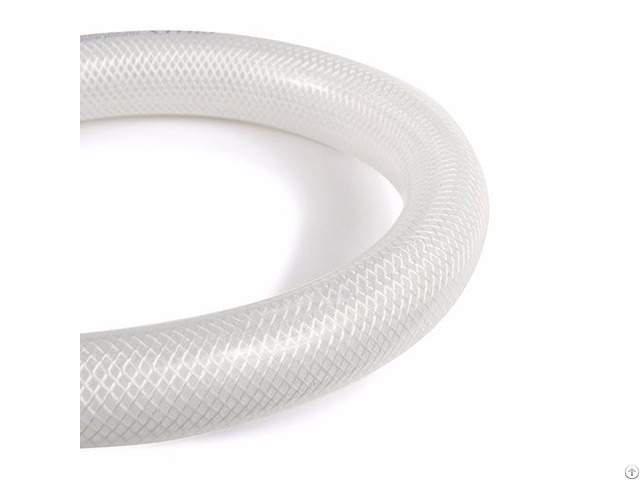

Glass Fiber Braid Reinforced Silicone Hose
• Construction:
Type GF is manufactured from High purity platinum cured Silicone with glass fiber reinforcement.
• Temp.
Range: -60℃ and 260℃.
• Color: Translucent (Colored covers available)
• Applications:
For transporting high temperature liquids where a closed Bending radius is not required.
It is not recommended for Vacuum.
Suitable for CIP and SIP cleaning.
• Certification: FDA, USP, BFR, USDA, ISO 10993.
• Length: Standard maximum length is 50 meters, for a longer length, please contact us.
Part no.
ID OD Bending radius Work pressure Bursting pressure in.
mm mm mm bar bar
GF003 1/8" 3 9 15 21 63
GF004 1/6" 4 10 20 20 60
GF005 3/16" 4.8 11 25 18 54
GF006 1/4" 6.4 13.5 40 17 51
GF008 5/16" 7.9 15 45 15 45
GF010 3/8" 9.5 17 60 14 42
GF013 1/2" 12.7 22 70 11 33
GF016 5/8" 15.9 25 85 10 30
GF019 3/4" 19 31 95 7 21
GF022 7/8" 22 34.5 145 6.5 19.5
GF025 1" 25.4 38 160 6 18
GF032 1-1/4" 32 46 200 5 15
Company Contact:
- Posted By: CJan Fluid Technology Co., Ltd.
- Phone: 86-021-57712166
- Address: Room 311 No.1, Lane2369, Rongle East Rd, Songjiang District, shanghai , shanghai , China
- Email:
- Website: http://www.cjanfluid.com/
Published date: September 25, 2017
- Business Description: "CJan, dynamic and versatile hose and fittings manufacturer, specializing in the field of fittings and hoses.
We are exporting all over the world and recognized for our products such as: food rubber hoses, silicone hoses, teflon hoses, FEP/PFA lined fittings and sanitary stainless fittings.
First in China: FOOD RUBBER HOSES are first-approved by SGS and pass FDA 21 CFR 177-2600 test in China.
FEP or PFA LINED FITTINGS are first liquefy-sintering fittings in China.
SILICONE HOSES are first-approved by SGS and pass FDA /USP test in China.
"
