Sae 100r6 Hydraulic Rubber Hose - China

Hydraulic Rubber Hoses, High Pressure Hydraulic Hose, Fiber Reinforced Hydraulic Rubber Hose Wholesaler.

Introduction:

Detailed Information:

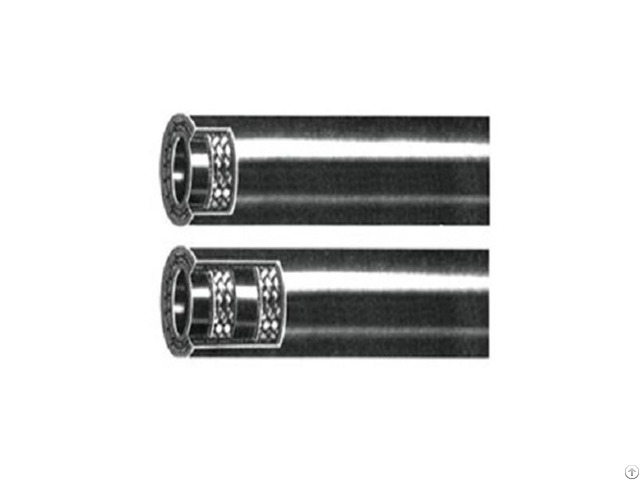

CONSTRUCTION: This hose consists of an inner tube of oil resistant synthetic, rubber, one wire braided reinforcement and an oil and weather resistant synthetic.

Working Temperature: -40℃～+100℃(-40°F~+ 212°F) rubber cover.

Features:

Parameter：

SAE 100 R6 Fiber Hydraulic Rubber Hose Specifications: DN Inches I .

D (mm) O.

D(mm) Max.W.P Min.

B.

P Min.

B.

R Min Max Max (Mpa) (Mpa) (mm)

5 3/16 4.4 5.2 11.9 3.4 14 50

6 1/4 5.9 6.9 13.5 2.8 11.2 65

8 5/16 7.4 8.4 15.1 2.8 11.2 80

10 3/8 9.0 10.0 16.7 2.8 11.2 80

13 1/2 12.1 13.3 20.6 2.8 11.2 100

16 5/8 15.3 16.5 23.8 2.4 9.6 125

19 3/4 18.2 19.8 27.8 2.1 8.4 150 Application:

Be suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.

Dongguan Rener specializes in all kinds of hydraulic hoses and flexible hose assembly solution.

Our main products: high pressure rubber hose, Industrial Hose, etc.

If you have interested in our High Pressure Hydraulic Hose, please feel free to contact us.

Company Contact:

• Posted By: Dongguan Rener Hose Technology Co., Ltd.

• Phone: 13925537396

• Address: No.202 Liyuan Road, Dongguan , Guangdong , China

• Email:

• Business Description: Dongguan Rener Hose Technology Co., Ltd. specializes in supplying all kinds of hydraulic hoses and flexible hose assembly solution.

  Our main products: high pressure rubber hose, high pressure steel wire braided hydraulic hose, high pressure steel wire spiral hydraulic rubber hose, hose assembly, food and pharmaceutical hose, chemical hose, water hose, high pressure air hose, mud suction & delivery hose, high temperature heat resistant steam hose, oil-resistant acid and alkali-resistant suction and discharge hose, high abrasion resistant high pressure sand blasting hose, large calibre steel hose, oil drilling and transportation hose, marine low-pressure oil pipeline, special steel and chemical hose, industrial delivery hose and other performance rubber hose and supply of stainless steel pressure-resistant metal hose, sanitary bathroom hose.

  Our products are widely used in sanitary, food, pharmaceutical, chemical, machinery, construction, mining, smelting, oil fields, electricity, water conservancy, port, shipping, agriculture, aviation and other industries.

  The automatic hydraulic system conveys petroleum-based (such as mineral oil, soluble oil, hydraulic oil, fuel oil, lubricating oil) liquids, water-based liquids (such as emulsion, oil-water emulsion, water), gas and liquid transmission with a certain pressure and temperature.

  The product has the characteristics of high pressure resistance, high temperature resistance, strong flexibility, good pulse performance, small pressure deformation, large length, etc.

  It can be manufactured by providing drawings or samples according to customer needs.
