Fm Metallic Flexible Sprinkler Connections Drops - China

Quick Details

Standard: JIS, AISI, DIN, EN

Place of Origin: China

Brand Name: EHASE-FLEX

Model Number: EH-8100

Type: Welded

Steel Grade: 300 Series

Application: Firefighting

Certification: FM

Welding Line Type: Spiral Welded

Size: DN25

Material: SUS304

Length: 700mm, 1000mm, 1200mm, 1500mm, 1800mm

Inlet: 1 inch

Outlet: 1/2 inch or 3/4 inch

Outlet Type: Straight Reducer or 90° Elbow Reducer

Rated Working Pressure: 200psi

Min.

Bend Radius: R150mm

Applications: Used in Commercial Building

Certificate: ISO, FM, CCC Supply Ability

Supply Ability: 10000 Piece/Pieces per Week HS Code: 8307 10 Packaging & Delivery

Packaging Details

Cartons or Pallet or Plywood Case No Unacceptable Material Used for Packing

Port

Shanghai or Ningbo or Any Port in China

Lead Time :

Quantity(Pieces) 1 - 2000 >2000

Est.

Time(day) 25 To be negotiated

Application:

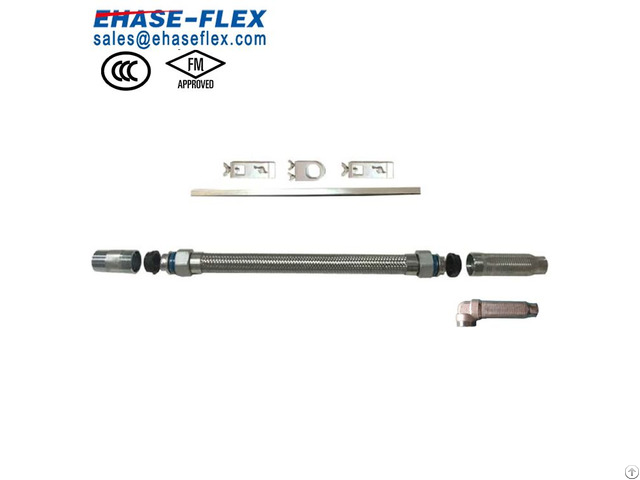

EH-8100-C is used to connect sprinkler head in commerical suspended ceiling Features:

1 - FM approved 2 - Easy installation with open central bracket: Take 1/10 of conventional system to install, reducing labor cost.

3 - Good flexibility: Eliminate potential leaks and protect gel seals during seismic activity.

Allow the independed way between ceiling grids and main water pipe.

Eliminate ceilings s tress and leak due to misaligned hard piped installation.

4 - With the feature of adjustable, it is suitable for types of ceiling keel and makes easy to adjust the location and height of sprinkler head.

5 - No downtime while sprinker heads are being removed to accommondate tool or floor-plane configuration.

Construction: ITEM PARTS MATERIAL

1 CONNECTOR SPCC/SUS304

2 SEAL RING SUS304

3 BELLOW SUS304

4 WIRE BRAIDS SUS04

5 NIPPLE SPCC/SUS304

Specification: SIZE 28A 40A 48A 60A 72A

LENGTH(mm) 700 1000 1200 1500 1800 Production Process

Production Capacity

Flexible Sprinkler Hoses: 350, 000pcs per Month

Flexible Joints/ Expansion Joints: 80, 000pcs Annual

Gas Connector: 300, 000pcs Per Month Water Connectors: 5, 000, 000m Annual
