Fm Certificated Flexible Sprinkler Hose For Use In Clean Room - China

Quick Details

Place of Origin: Zhejiang, China (Mainland)

Brand Name: Ehase-Flex

Model Number: EH-8000

Product Name: Clean Roon Use Flexible Sprinkler Hose

Application: laboratory, electronic, Lab, Medical

Size: 24A, 32A, 40A, 48A, 60A, 72A

Length: 600/800/1000/1200/1500/18 00MM

Working Pressure: 16kgf/Cm2

Radius: R150MM

Technics: Welding Bellows

OEM Or ODM: Allowed

Certificate: FM

Test: 100% Tested within 1.5Times Working Pressure Supply Ability

Supply Ability: 350000 Piece/Pieces per Month H.

S Code: 8307.10 Packaging & Delivery

Packaging Details

Cartons or Pallet or Plywood Case No Unacceptable Material Used for Packing

Port

Shanghai or Ningbo or Any Port in China

Lead Time :

Quantity(Pieces) 1 - 2000 >2000

Est.

Time(day) 25 To be negotiated

Application:

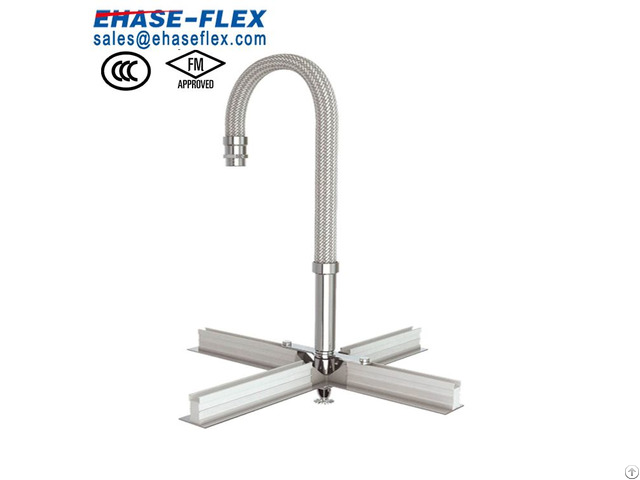

EH-8000 Fire Speinkler Flexible Hose is used to connect sprinkler head in Clean Room Features:

1 - FM Approved

2 - Non-pollution: All stainless steel construcito requires no paiting or epoxy coating.

3 - Simple installation: Take 1/8 of conventional system to install, reducing labor cost.

4 - Good flexibility: Eliminate potential leaks and protect gel seals during seismic activity.

Allow the independed way between ceiling grids and main water pipe.

Eliminate ceilings stress and leak due to misaligned hardpiped installation.

5 - With the future of adjustable, it is suitable for types of ceiling keel and makes easy to adjust the location and height of sprinkler head.

6 - No downtime while sprinkler heads are being removed to accommondate tool or floor-plane configuration.

Specification:

Construction:

Item Parts Material

1 Bellows Hose SUS304

2 Braids SUS304

3 Nipple SUS304

4 Reducer SUS304

5 Seal Ring SUS304 Specification:

Item Size Length

1 EH-8000-24A 600

2 EH-8000-32A 800

3 EH-8000-40A 1000

4 EH-8000-48A 1200

5 EH-8000-60A 1500

6 EH-8000-72A 1800

roduction Process

Production Capacity

Flexible Sprinkler Hoses: 350, 000pcs per Month

Flexible Joints/ Expansion Joints: 80, 000pcs Annual

Gas Connector: 300, 000pcs Per Month Water Connectors: 5, 000, 000m Annual
