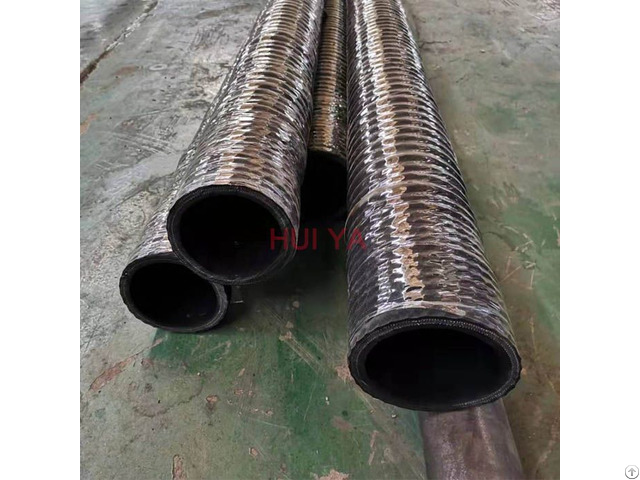

Epdm Rubber Fuel Resistance Oil Delivery Hose - China
price: 150.00 Dollar US$
Oil delivery hose EPDM rubber fuel resistance oil delive ry hose
PRODUCT PARAMETERS
The dock oil hose exceeds the basic requirements of all International rules because their construction is a direct derivate of designs, technology and quality control procedures used in the building of marine hoses for offshore application, with long operational life and total environmental safety in mind.
Oil Delivery Composite Hose
It is used for crude oil and liquid petroleum products delivery to tankers and bunkering vessels.
Max 55% aromatic content resistance.
Electrically continuous (discontinuous on request).
Inner Tube: Black NBR.
Cover: Black CR-abrasion, ozone, sea water and hydrocarbon resistant.
Safe factory: 4: 1.
Reinforcement: High tensile textile cords.
Temperature: -20 °C to +82 °C (-4 °F to +180 °F).
Oil delivery hose wholesale: Our company specializes in producing High pressure hoses, Hydraulic hoses, SAE & DIN series hoses, Drilling Rotary hose, Choke & Kill Line, Bop hoses, Suction and Discharge hose, Fabric hoses, Metal Flexible hose, Fireproof hose, Silicone hose and Hose Assembly, Kelly Hose, etc.
Dock Oil Hose Technical Specification
PRAT NO.
ID OD Working Pressure Burst Pressure Vacuum Bending Radius Weight inch mm mm bar Psi bar Psi bar mm kg/m
DOH-0051 2 51 71 15 225 60 900 0.9 300 2.79
DOH-0076 3 76 96 15 225 60 900 0.9 420 4.10
DOH-0102 4 102 132 15 225 50 900 0.9 560 7.61
DOH-0152 6 152 188 15 225 60 900 0.9 850 16.42
DOH-0203 8 203 249 15 255 50 900 0.9 1100 26.80
