  • En 853 2sn Hydraulic Rubber Hose - China

    price: 150.00 Dollar US$

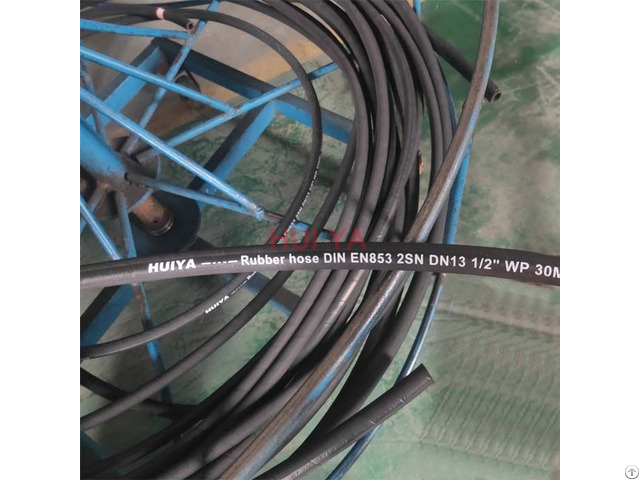

    EN 853 2SN hydraulic rubber hose

    PRODUCT PARAMETERS

    EN 853 2SN hydraulic rubber hose is reinforced by two braids of high tensile steel wire to support high working pressures up to 6020 Psi at 3/16" I.D. Oil resistant tube and ozone resistant, abrasion resistant cover contribute for long-term service life.

    It can be applied for conveying water and petroleum-based hydraulic fluids within -40 °C to +100 °C (max 120 °C intermittent).

    long working life hydraulic rubber hose

    They are applied for outside applications such as offshore, forestry, factories and similar applications where abrasion resistance should be high.

    Anti- UV hydraulic rubber hose

    Tube: Inner tube in high quality synthetic rubber compounds.

    Reinforcement: Two high tensile steel wire braid.

    Cover: Abrasion and weather resistant synthetic rubber.

    Temperature: -40 °C to +100 °C (-40 °F to +212 °F).

    Our company specializes in producing High pressure hoses, Hydraulic hoses, SAE & DIN series hoses, Drilling Rotary hose, Choke & Kill Line, Bop hoses, Suction and Discharge hose, Fabric hoses, Metal Flexible hose, Fireproof hose, Silicone hose and Hose Assembly, Kelly Hose, etc.

    EN 853 2ST /2SN Steel Wire Reinforced Hydraulic Rubber Hose Technical Specification

    PART NO.

    Size SAE Size ID Reinforcement W.

    D OD MaxW.

    P Proof Pressure Min B.

    P Min B.

    R Weight A AT mm inch dash min max min max min max max MPa Psi MPa Psi MPa Psi mm kg/m

    EN8532SN-0005 5 3/16 -3 4.6 5.4 10.6 11.6 15.1 16.7 14.1 41.5 6020 83 12035 165 23925 90 0.32

    EN8532SN-0006 6.3 1/4 •4 6.2 7.0 12.1 13.3 16.7 18.3 15.7 40 5800 80 11600 160 23200 100 0.36

    EN8532SN-0008 8 5/16 -5 7.7 85 13.7 14.9 - 18.3 19.9 17.3 35 5075 70 10150 140 20300 115 0.45

    EN8532SN-0010 10 3/8 -6 9.3 10.1 16.1 17.3 20.6 22.2 19.7 33 4785 66 9570 132 19140 130 0.54

    EN8532SN-0013 12.5 1/2 -8 12.3 135 19.0 20.6 23.8 25.4 23.0 27.5 3990 55 7975 110 15950 180 0.68

    EN8532SN-0016 16 5/8 -10 15.5 16.7 22.2 23.8 27.0 28.6 26.2 25 3625 50 7250 100 14500 200 0.80

    EN8532SN-0019 19 3/4 -12 1&6 19B 26.2 27.8 31.0 32.6 30.1 21.5 3120 43 6235 85 12325 240 0.94

    EN8532SN-0025 25 1 -16 25.0 26.4 34.1 35.7 38.5 40.9 38.9 16.5 2390 32.5 4710 65 9425 300 1.35

    EN8532SN-0032 31.5 1 1/4 -20 31.4 33.0 43.3 45.7 49.2 52.4 49.5 12.5 1810 25 3625 50 7250 420 2.15

    EN8532SN-0038 38 1 1/2 •24 37.7 393 49.6 52.0 55.6 58.8 55.9 9 1305 18 2310 36 5220 500 2.65

    EN8532SN-0051 51 2 -32 50.4 52.0 62.3 64.7 68.2 71.4 68.6 8 1160 16 2320 32 4640 630 3.42


    Company Contact:


    • Phone: 318-2883888

    • Address: East Development Zone, Jingxian County, Hengshui City, Hebei , China

    • Email: Email


    Published date: December 20, 2019

    • Business Description: HENGSHUI HUIYA NEW-MAT TECHNOLOGY CO., LTD. was established in 2013 under the Registration Number 91131102063365867P, is located in East Development Zone, Jing County, Hengshui City, Hebei Province, nearby Tianjin Port and Beijing International Airport.

      we are a technology-based enterprise which is specialized in the area of R&D, Producing and marketing of multiply rubber products.

      Our company specializes in producing High pressure hoses, Hydraulic hoses, SAE & DIN series hoses, Drilling Rotary hose, Choke & Kill Line, Bop hoses, Suction and Discharge hose, Fabric hoses, Metal Flexible hose, Fireproof hose, Silicone hose and Hose Assembly, Kelly Hose, etc.
