China Manufacture High Pressure Flexible Heat Resistant Steam Rubber Hose - China

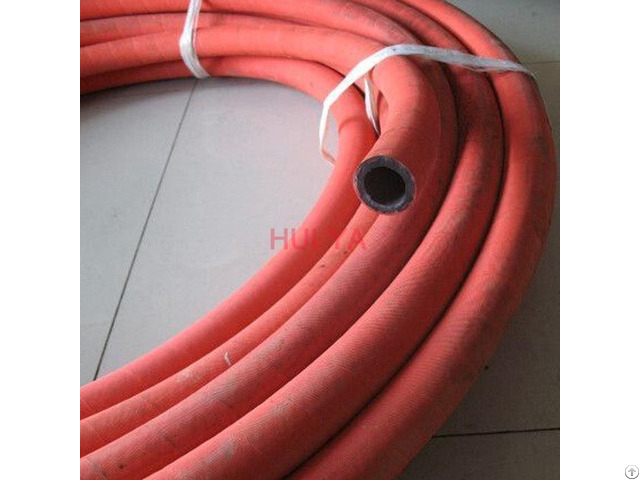

Heat resistant Steam Hose China Manufacture high pressure flexible heat resista nt steam rubber hose

Heat resistant hose rubber pipe used for discharging steam.

This high temperature flexible rubber hose (EPDM rubber hose) designed for service with superheated.

Steam in heat control, fire prevention, etc.

In many industries at max pressure of 17 bar (250 psi).

Steam hose: Mandrel built high pressure wire reinforced steam hose designed for service with superheated steam in heat control, fire prevention etc.

The max pressure can reach 17 bar/250 psi.

Temperature range: -40℃ to +236℃

Inner: Black, smooth, EPDM rubber specially compounded to withstand super heated steam.

Reinforcement: Plies of steel wire cord

Cover: Red or black smooth(wrapped finish) EPDM rubber with excellent resistance to high temperature, weathering, abrasion and ageing; it is pin-pricked to prevent separation.

Steam Hose Factory: Our company specializes in producing High pressure hoses, Hydraulic hoses, SAE & DIN series hoses, Drilling Rotary hose, Choke & Kill Line, Bop hoses, Suction and Discharge hose, Fabric hoses, Metal Flexible hose, Fireproof hose, Silicone hose and Hose Assembly, Kelly Hose, etc.

Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Bending Radius

mm inch mm inch bar psi bar psi Kg/m lbs/ft mm

13 1/2 25 1 17 250 170 2500 0.53 0.36 91

19 3/4 32 1-7/32 17 250 170 2500 0.68 0.46 133

25 1 39 1-29/64 17 250 170 2500 0.90 0.62 175

32 1-1/4 46 1-13/16 17 250 170 2500 1.30 0.87 224

38 1-1/2 54 2-1/8 17 250 170 2500 1.60 1.10 266

51 2 67 2-41/64 17 250 170 2500 2.20 1.51 357

63 2-1/2 83 3-5/16 17 250 170 2500 3.80 2.61 445

76 3 95 3-13/16 17 250 170 2500 4.66 3.20 532

102 4 124 4-7/8 17 250 170 2500 6.50 4.46 714
