API 7k 15000PSI high pressure rotaryâ €‚hose Our company specializes in producing High pressure hoses, Hydraulic hoses, SAE & DIN series hoses, Drilling Rotary hose, Choke & Kill Line, Bop hoses, Suction and Discharge hose, Fabric hoses, Metal Flexible hose, Fireproof hose, Silicone hose and Hose Assembly, Kelly Hose, etc.

PRODUCT FEATURES

1 - Application: This rotary hose is used for the oil drilling and mud transportation systems, as the flexible connection between the bottom of drilling riser and the water faucet which can move vertically.

And used for adjusting the installation error between the drilling pump line and the drilling riser to connect well and isolate vibration.

Under high pressure, it can used for conveying the water-base and oil-base mud with minimum aniline point 60℃, which pumped out from rotary drilling equipment.

It can also prevent the erosion of H2S and convey the oilfield well water, oil mud, etc.

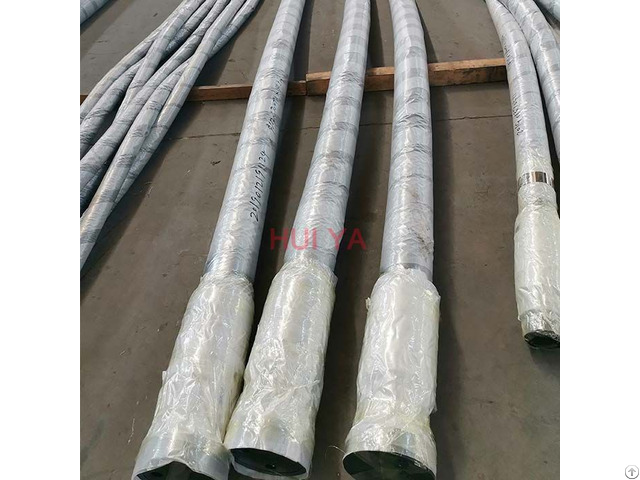

Ultra High Pressure rotary hose

2 - Construction: Consisted of inner rubber layer or stainless steel armoured pipe, reinforced layer of carbon fiber, medium rubber layer, reinforced layer of steel and outer rubber layer of carbon fiber.

3 - Features: The steel wire of reinforced layer is the imported high tensile steel which is specialized in the spiral rubber hose.

Inner rubber adopted the virgin rubber from German LANXESS Company and the proprietary formula of our company which can tolerate oil-base mud, H2S and water-base mud.

And inner wall is wear-proof which can withstand the high-speed mixed mud flow and the high temperature and extreme weather.

For locking the connected couplings, with the proprietary technology of our company, the hose and fittings can be the same diameter to ensure no choked flow, eddy or failure in shear.

4 - Transmission medium: Water-base mud, oil-base mud, and hydrogen sulphide-proof medium.

5 - Appearance of the color: Water-base mud hose is black.

Oil-base mud hose is orange.

H2S-resistance hose is orange.

6 - Standard: API Spec 7K

7 - API license number: 7K-0376

8 - Working temperature: -20℃~+121℃

ID: mm (Inch) 51 (2") 64 (2-1/2") 76 (3")

GRADE A B C D E F G A B C D E F G A B C D E F G

WP: Mpa Psi 11 1500 14 2000 28 4000 35 5000 52 7500 70 10000 105 15000 11 1500 14 2000 28 4000 35 5000 52 7500 70 10000 105 15000 11 1500 14 2000 20 4000 35 5000 52 7500 70 10000 105 15000

TP: Mpa Psi 22 3000 28 4000 56 5000 70 10000 104 15000 105 15000 157.75 22500 22 3000 28 4000 56 5000 70 10000 104 15000 105 15000 157.75 22500 22 3000 28 4000 56 5000 70 10000 104 15000 105 15000 157.75 22500

Min.

Bending Radius (mm) 800 800 850 850 900 950 1000 900 900 1000 1000 1050 1100 1150 950 950 1050 1050 1100 1150 1150

Type of Joint TBG /LP / UNION TBG /LP / UNION TBG /LP / UNION

ID: mm (Inch) 89 (3-1/2") 102 (4") 127 (5") 152 (6")

GRADE A B C D E F G A B C D E F A B C D A B C D

WP: Mpa Psi 11 1500 14 2000 28 4000 35 5000 52 7500 70 10000 105 15000 11 1500 14 2000 28 4000 35 5000 52 7500 70 10000 11 1500 14 2000 28 4000 35 5000 11 1500 14 2000 28 4000 35 5000

TP: Mpa Psi 22 3000 28 4000 56 5000 70 10000 104 15000 105 15000 157.75 22500 22 3000 28 4000 56 5000 70 10000 104 15000 105 15000 22 3000 28 4000 56 8000 70 10000 22 3000 28 4000 56 5000 70 10000

Min.

Bending Radius (mm) 1000 1000 1100 1100 1150 1150 1200 1050 1050 1100 1100 1150 1200 1200 1200 1300 1300 1300 1300 1400 1400
