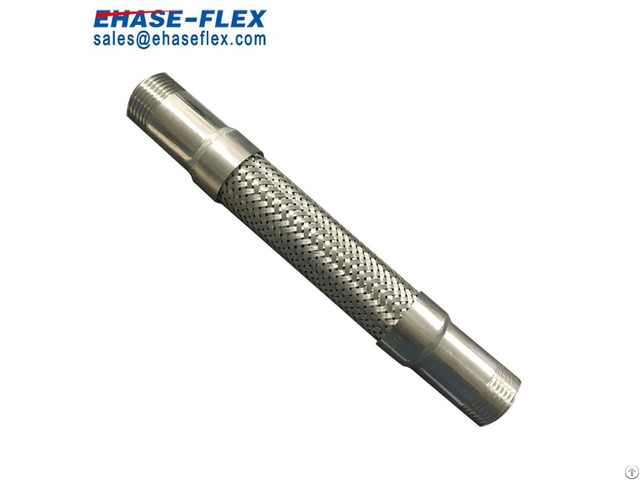

Vibration Absorbing Stainless Steel Braided Joint Flexible Pipe Connector - China

Quick Details

Place of Origin: Zhejiang, China (Mainland)

Brand Name: Ehase-Flex

Model Number: EH-500T

Type: Weld

Material: Stainless Steel

Technics: Weld

Connection: Thread

Shape: Equal

Head Code: Square

Product Name: Flexible Metal Hose Bellows

Application: Used in Small Bore

Nominal Bore: DN15--DN80

Working Pressure: 10 Bar, 16Bar, 25Bar

Length: 100-2000mm

Welding Line Type: Spiral Welded

Thread: NPT, BSPT OR PT

Temperature Rating: Max.

1000℃

OEM: Allowed

Certificate: ISO Supply Ability

Supply Ability: 80000 Piece/Pieces per Year H.

S Code: 7307.29 Packaging & Delivery

Packaging Details

Carton Box, Pallet, or Plywood Case NO Unacceptable Packaging Material or Bamboo Products been Used as Packing

Port

Shanghai, Ningbo or any port in china

Lead Time :

Normal 20 Working days Product Description

Flexible Metal Hose Bellows Application: 1 - Reducing noise, and absorbing the Vibration using small-scale pump to link with tube route, High static pipe vibration noise will be reduced greatly .

2 - Compensate Misalignment

The stress due to the misaligment of the pipeline installation can be eliminated effectively throught the Ehase flexible connector.

3 - Absorbtion of thermal expansion

By connecting the Ehase flexible connector, lateral and angular movement will

be greatly absorbed thus protecting and maintaining the pipes in your machines.

Construction:

Item Parts Material Remark

1 Bellows SUS304 SUS316/321

2 Braids SUS304 3 Threads SUS/CS PT or NPT

4 Seal Rings SUS304 SUS3016 Specification:

Type Nominal Bore Total Length Bellows O.D. Max Offset Working Pressure mm ins mm ins mm mm kg/cm²

EH500T 15 1/2 250 10 18.7 20 16

EH500T 20 3/4 250 10 25.3 20 16

EH500T 25 1 250 10 32.6 20 16

EH500T 32 1 1/4 250 10 41.2 18 16

EH500T 40 1 1/2 300 12 47.7 16 16

EH500T 50 2 300 12 62 15 16

EH500T 65 2 1/2 350 14 82 14 16

EH500T 80 3 350 14 97 12 16

* The specifiations stated above are standard.

We can also produce products according to customer's requirement.

*Threads: BSPT, NPT, etc.

Production Process

Production Capacity

Flexible Sprinkler Hoses: 350, 000pcs per Month

Flexible Joints/ Expansion Joints: 80, 000pcs Annual

Gas Connector: 300, 000pcs Per Month

Water Connectors: 5, 000, 000m Annual Packaging & Shipping

Packaging Details

Carton Box, Pallet, or Plywood Case

FAQ

Q : Are you trading company or manufacturer?

A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.

Q: Do you have products catalog?

A: Yes, we have.

Please tell me your email or instant messager, we will send our catalog.

Q: Can you provide drawings and technical data?

A: Yes, our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?

A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?

A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK.

Q: How long is your delivery time?

A: Depends on QTY, but normally no more than 20 working days.

Q: Can the products be manufactuered by customer's requirement?

A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Q: Visting company is allowed or not?

A: Yes, we welcome customers visiting our company.

We are located in Hangzhou, Zhejiang Prov., China

Company Contact:

• Posted By: E-hase Flex

• Phone: 86-571-87176348

• Address: Tangqi Industrial Park Yuhang Dis, HangZhou , Zhejiang , China

• Email:

• Website: https://www.ehaseflex.com/

• Business Description: Ehase-Flex is one of the most famous brand in metal flexible joint and expansion joint in Taiwan, with more than 40-year experience in manufacturing flexible joint, expansion joint, flexible sprinkler hose, flexible tube, gas connector, rubber joint.

  We founded our factory in China mainland in 2006 - Our company had obtained the quality control system ISO9001.

  Our products are FM, UL, CCC, CSA , SGS approved and 100 % tested before delivery.

  With high quality our products are widely used in many field such as petroleum, chemical, semiconductor, electronics, machinery, electric power, ship building, nuclear energy, and have got highly recognized among customers both domestic and overseas.

  We have customers such as SAMSUNG, BMW, DUPONT, LG, MIXC MALL, Hyatt hotel, Marriott Hotel.
