Thread Rubber Joint For Transporting Powder Dn50 - China

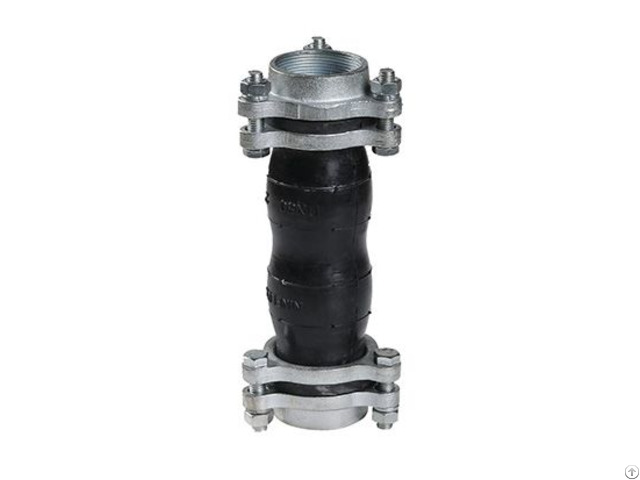

Thread Rubber expansion Joint

Rubber Joint

Rubber expansion joint has the characteristics of good sealing, light weighting, easy to fix and maintain, also has long working expecting, but please keep far away from sharp metal in order to avoid breaking the rubber body.

Equipped with the excellent comprehensive performances of rubber expansion bellows, thread rubber bellows can be used for lift and transportation of raw water and sewarubberge, transportation of water supply, cooling cycle water of thermal power plant, condensate water of metallurgy industry and chemical materials of chemical industries, cooling and dilution of oil and chemical industries and flexible connection of other industries.

It is also suitable to transport all grain and powder material and gas for its high abrasive resistance.

Due to its good integral function, flexible rubber joint is used widely in key projects of chemical industry, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, health, fireproof and power, etc.

Specification

Working Pressure(Bar) 10 16

Bust pressure(Bar) 30 48

Vacuum(mm Hg) 400 650

MATERIAL LIST

Item No.

Parts Name Parts Material

1 Cover EPDM

2 Reinfording Fabric Nylon

3 Tube EPDM

4 Retain Rings Steel

5 Union Nut Carbon Steel

6 Un ion Screw Carbon Steel TECHNICAL CONDITIONS

Working pressure Mpa (kgf/cm2) 1.6(16) Angular deflection 45°

Explosion pressure Mpa (kgf/cm2) 4.8 (48) Vacuum Kpa (mm/Hg) 53.3 (400)

Applicable Temperature -15℃-115℃(-30℃-250â „ƒ under special conditions)

Applicable media water, sea water, hot water, air, compressed air, oil, acid, alkali and so on

MAIN DATE Nominal Diameter

(mm) LengthLmm Axial displacement mm Haorizontal isplacement Angular deflection(a1+a2)°

mm inch Extension Compression mm 15 0.5 200 5-6 22 22 45

20 0.75 200 5-6 22 22 45

25 1 200 5-6 22 22 45

32 1.25 200 5-6 22 22 45

40 1.5 200 5-6 22 22 45

50 2 200 5-6 22 22 45

65 2.5 265 8-10 24 24 45

80 3 285 8-10 24 24 45
