Metal Expansion Joint For Lateral Movement Compensator - China

Quick Details

Place of Origin: Zhejiang, China (Mainland)

Brand Name: Ehase-flex

Model Number: EH-800H

Type: Lateral Movement Compensator Expansion Joint

Material: Stainless Steel, SUS304, 316, 321

Technics: welding

Connection: Flange

Shape: Equal

Head Code: Round

Size: DN15-DN2000

Temperature: Max.

1000℃

Rated Working Pressure: 10bar, 16bar, 25bar, 40bar, 60bar, 100bar

Lateral Movement: 25mm or According to Requirement

Flanges Standard: JIS, ANSI, DIN, BS, JB.

Design Standard: EJMA

Application: Lateral Movement Compensator Expansion Joint

Certificate: ISO

OEM/ODM: Allowed Supply Ability

Supply Ability: 7000 Piece/Pieces per Month HS Code: 7307.99 Packaging & Delivery

Packaging Details

Carton Box, Pallet, or Plywood Case No Unacceptable Packaging Material or Bamboo Products been Used as Packing

Port Shanghai or Ningbo or Any Port in China

Lead Time : Normally 20 Days; Depends on Customer's Requirement

Product Description

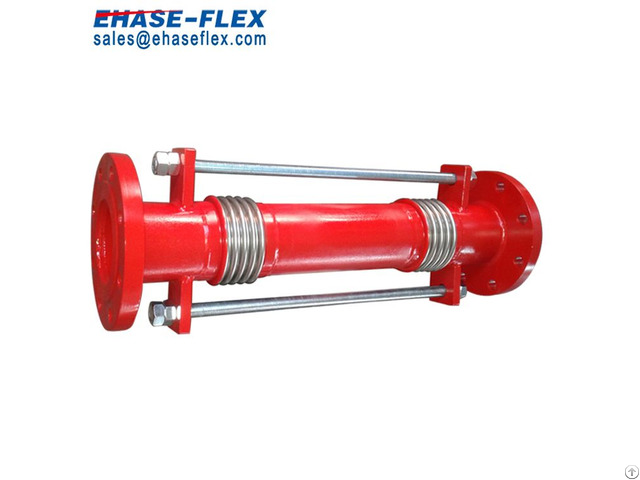

Metal Expansion Joint for Lateral Movement Compensator

100% Tested Before Delivery

OMEGA Bellows, more flexible, longer service life

More than 40-year experience in manufacturing It should be installed offset to absorb the movement.

When installed, it must be at the fully extended length and at 90° to the line of movement.

Tie tie rods can't be adjusted or removed to ensure the proper functioning of the unite.

Application

1 - One Plane System: It can be instead of two hinged joints to absorb the movement

2 - Two Planes System:

It can be instead of two gimbal joints.

Maybe used in the offset pipe as shown.

Construction

ITEM PARTS MATERIAL REMARK

1 Bellows SUS304 SUS316/321

2 Flanges SS400 SUS304/316/321

3 Tube End SS400 SUS304/316/321

4 Tie Rods SS400 SUS304/316 Specification

Nominal Bore Total Length to ±25mm Lateral Mvmt Bellows O.D. Force to Deflect Max Length Added for Each Extra ±25mm Rated Working Pressure kg/cm2

mm ins mm mm kg mm EH-800 EH-800H

50 2 600 76 4.0 210 10 16

65 2 1/2 600 92 10.6 210 10 16

80 3 700 106 8.1 210 10 16

100 4 700 133 8.9 210 10 16

125 5 750 163 28.7 210 10 16

150 6 750 190 37.7 210 10 16

200 8 800 252 73.3 210 10 16

250 10 800 315 165 240 10 16

300 12 1000 366 205 360 10 16

350 14 1000 396 266 360 10 16

400 16 1000 460 432 360 10 16

500 20 1200 561 470 480 10 16

600 24 1200 663 791 480 10 16

*Specifications stated abvoe are the standard.

We can design and manufacture according to customer's requirement *Flange Standard: JIS, ANSI, DIN, B.S. JB etc Features

1 - Excellent Welding Technology, like a fish swimming in water.

2 - Omega Bellows, More flexible and longer service life.

Production Capacity

Flexible Sprinkler Hoses: 350, 000pcs per Month

Flexible Joints/ Expansion Joints: 80, 000pcs Annual

Gas Connector: 300, 000pcs Per Month Water Connectors: 5, 000, 000m Annual

FAQ

Q : Are you trading company or manufacturer?

A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.

Q: Do you have products catalog?

A: Yes, we have.

Please tell me your email or instant messager, we will send our catalog.

Q: Can you provide drawings and technical data?

A: Yes, our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?

A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?

A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK.

Q: How long is your delivery time?

A: Depends on QTY, but normally no more than 20 working days.

Q: Can the products be manufactuered by customer's requirement?

A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Q: Visting company is allowed or not?

A: Yes, we welcome customers visiting our company.

We are located in Hangzhou, Zhejiang Prov., China
