Malleable Iron Two Socket Cross - China

Malleable Iron Pipe Clamps

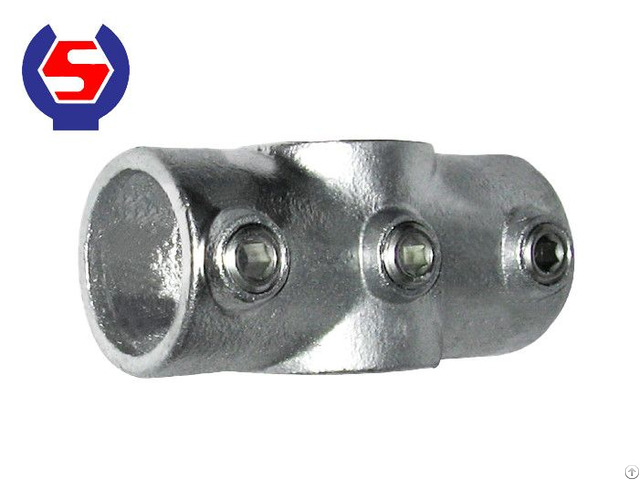

Type 119 Two Socket Cross

90° joint, often used between middle rail and uprights on level sites and often paired with type 101 or 104 - The through tube (vertical) cannot be joined within the fitting.

Body Material Standard Malleable Iron, meet standard ASTM A197

Screw Stainless and Carbon Steel

Tensile Strength >=350Mpa

Elongation >=10%

Hardness HB<=150

Size Available AA to E (OD size 27-60 MM)

Surface Treatment Hot Dipped Galvanized, Black, Zinc Plated & Powder Coated

Pipe Clamp Size Nominal Bore Outside Diameter

AA21 1/2’’ 21.3mm

A27 3/4’’ 26.9mm

B34 1’’ 33.7mm

C42 1-1/4’’ 42.4mm

D48 1-1/2’’ 48.3mm

E60 2’’ 60.3mm Malleable Iron Pipe Clamps are easlily identified by a type number of each design eg.

125 followed by a size code eg.

D48, the latter part of which corresponds with the approximate outside diameter of the tube to be used (48.3mm=1-1/2" nominal bore in this case)Hence a 90° elbow suitable for an 1-1/2" norminal bore tube in this example would be denoted as a 125-D48.

Malleable Iron Pipe Clamps are used for a versatile, multi-purpose system.

The flexibility of the system allows complex structures to be assembled in a quick and efficient manner.

Company Contact:

• Posted By: Shijiazhuang Sunny Trading Co., Ltd.

• Phone: 8613131189526

• Address: No. 9, Fengshou Road, Chang'an District, Shijiazhuang, Hebei, China , Shijiazhuang , Hebei , China

• Email:

• Website: https://www.hbpipefittings.cn

• Business Description: Shijiazhuang Sunny Trading Co., Ltd. is a professional supplier of pipeline industry.

  We are also an export agent for some malleable iron factory and carbon steel factory.

  All of them are located in Hebei or Shanxi Province.

  With over 20 years of experience and advanced production facilities, we can meet multiple requirements of clients.

  Our main products: malleable iron pipe fittings, steel pipe nipples, steel sockets, beam clamps, tube clamp fittings, hose clamps, air hose coupling & double bolt hose clamps, electrical conduit fittings, castings and other machinery products according to the customers' drawings and samples.

  We also cooperate with some reputed factories.

  All the products are carefully tested to meet the strict quality requirements and industry standards, with high quality and competitive prices.

  We regard "Best quality, Best price, Best after sale service" as our guideline.

  Most of our products are exported to Europe, North American, South American, Southeast Asia, the Middle East, etc., and have won great reputations among our customers.
