Malleable Iron Plain - China

Malleable Iron Plain Malleable Iron Pipe Fittings Supplier

Malleable Iron Pipe Fittings

FIG NO.

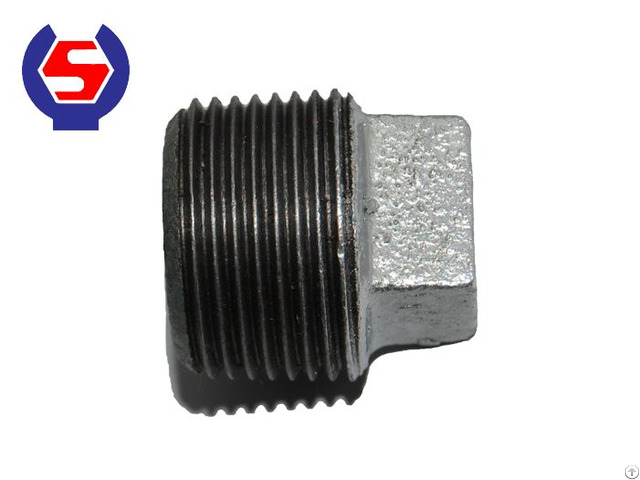

291 Plugs, Plain

Material Black heart malleable iron

Surface Treatment a.

Black (as cast) b.

Galvanized (hot dip zinc coating) c.

Epoxy painting (250-300 Microns)

DIN Standard

(According to EN10242) Exported to many European countries Materials: DIN1692 Dimensions: DIN2950, EN10242, ISO49 Threads: DIN2999

American Standard Export to North and South American countries Materials: ANSI/ASME A197-79 Dimensions: ANSI/ASME B16.3-85 Threads: ANSI/ASME B1.20.1

British Standard Export to Middle East countries Dimensions: BS EN 10242, BS 143&1256 Threads: ISO 7/1

ABNT 6943 Standard Export to Brazil

Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)

Mechanical Properties Tensile Strength: ≥ 33kg/mm² Elongation Rate: ≥ 8% Hardness: ≤ HB150

Hydrostatic Test Test Pressure: 25kg/cm², 100% test before shipment Working Pressure: 16kg/cm²

Type Banded without ribs, Beaded with ribs, Beaded without ribs

Series Heavy, standard, medium, light

Certificate BSI, ANAB, ISO9001, FM, UL

Applications Suitable for Pipe lines connect of steam, air, gas, oil

and so on

Buyer’s drawings or designs are available

Package 1 - Cartons without pallets 2 - Cartons with pallets 3 - Double woven bags Or as buyer’s requirements

Delivery detail According to the quantities and specifications of each order According to the quantities and specifications of each order Our main products: malleable iron pipe fittings, steel pipe nipples, steel sockets, beam clamps, tube clamp fittings, hose clamps, air hose coupling & double bolt hose clamps, electrical conduit fittings, castings and other machinery products according to the customers' drawings and samples.

We also cooperate with some reputed factories.

All the products are carefully tested to meet the strict quality requirements and industry standards, with high quality and competitive prices.

We regard "Best quality, Best price, Best after sale service" as our guideline.

Most of our products are exported to Europe, North American, South American, Southeast Asia, the Middle East, etc., and have won great reputations among our customers.

Company Contact:

• Posted By: Shijiazhuang Sunny Trading Co., Ltd.

• Phone: 8613131189526

• Address: No. 9, Fengshou Road, Chang'an District, Shijiazhuang, Hebei, China , Shijiazhuang , Hebei , China

• Email:

• Website: https://www.hbpipefittings.cn

• Business Description: Shijiazhuang Sunny Trading Co., Ltd. is a professional supplier of pipeline industry.

  We are also an export agent for some malleable iron factory and carbon steel factory.

  All of them are located in Hebei or Shanxi Province.

  With over 20 years of experience and advanced production facilities, we can meet multiple requirements of clients.

  Our main products: malleable iron pipe fittings, steel pipe nipples, steel sockets, beam clamps, tube clamp fittings, hose clamps, air hose coupling & double bolt hose clamps, electrical conduit fittings, castings and other machinery products according to the customers' drawings and samples.

  We also cooperate with some reputed factories.

  All the products are carefully tested to meet the strict quality requirements and industry standards, with high quality and competitive prices.

  We regard "Best quality, Best price, Best after sale service" as our guideline.

  Most of our products are exported to Europe, North American, South American, Southeast Asia, the Middle East, etc., and have won great reputations among our customers.

  Our Products:

  - malleable iron pipe fittings1# bends m and f 90 degrees

  - 90 degrees bends malleable iron pipe fittings

  - male malleable iron pipe fittings

  - 45 degrees bends malleable iron pipe fittings

  - cross over malleable iron pipe fittings
