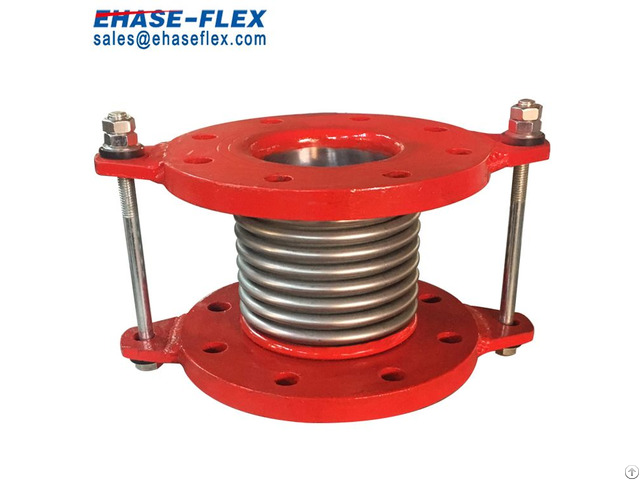

Flexible Bellow Type Expansion Compensator Joint - China

Quick Details

Place of Origin: Zhejiang, China (Mainland)

Brand Name: Ehase-Flex

Model Number: EH-500HE

Type: Flange

Material: Stainless Steel, SUS304/ 316/321

Technics: welding

Connection: Flange

Shape: Equal

Head Code: Round

Size: DN15-DN2000

Axial Movement: +10 -20mm or as Customer Required

Temperature Rating: Max 1000℃

Rated Working Pressure: 10bar, 16bar, 25bar, 10bar, 63bar, 100bar

Flange Standard: JIS, ANSI, DIN, BS, JB,,, Standard: EJMA

Application: Applied to Pipe Line System to Compensate Axial Movement

Certificate: ISO 9001

OEM/ODM: Allowed Supply Ability

Supply Ability: 7000 Piece/Pieces per Month HS Code: 7307 99 Packaging & Delivery

Packaging Details

Carton Box, Pallet, or Plywood Case No Unacceptable Packaging Material or Bamboo Products been Used as Packing

Port Shanghai or Ningbo or Any Port in China

100% Before Delivery

More than 40-year experience in manufacturing Construction

Items Parts Material Remark 1 Bellows SUS304 SUS316/SUS321 2 Flange SS400/FCD SUS304/316/321 3 Tie Rods SS400 SUS304 4 Internal Sleeve SUS304 2PCS 5 Limited Pipe SUS304 Specification

Nominal Bore Total Length Bellows O.D. Force to Compress Effective Area Axial Movement Rated Working Pressure mm ins mm mm kg cm2 mm kg/cm2

40 1 1/2 150 58 75 20.4 +10 -20 25

50 2 150 76 110 34.2 +10 -20 25

65 2 1/2 150 92 261 51.5 +10 -20 25

80 3 150 106 205 70.1 +10 -20 25

100 4 150 133 303 110.5 +10 -20 25

125 5 150 163 630 168.7 +10 -20 25

150 6 150 190 1154 233.9 +10 -20 25

200 8 200 252 1320 389.1 +10 -35 25

250 10 200 292 1532 592.2 +10 -35 25

300 12 200 366 1780 829.7 +10 -35 25 *Specifications stated abvoe are the standard.

We can design and manufacture according to customer's requirement

*Flange Standard: JIS, ANSI, DIN, B.S. JB etc Features

1 - Excellent Welding Technology, like a fish swimming in water.

2 - Omega Bellows, More flexible and longer service life.

Packaging & Shipping

Carton Box, Pallet, or Plywood Case FAQ

Q : Are you trading company or manufacturer?

A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.

Q: Do you have products catalog?

A: Yes, we have.

Please tell me your email or instant messager, we will send our catalog.

Q: Can you provide drawings and technical data?

A: Yes, our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?

A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?

A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK.

Q: How long is your delivery time?

A: Depends on QTY, but normally no more than 20 working days.

Q: Can the products be manufactuered by customer's requirement?

A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Q: Visting company is allowed or not?

A: Yes, we welcome customers visiting our company.

We are located in Hangzhou, Zhejiang Prov., China

Company Contact:

• Posted By: E-hase Flex

• Phone: 86-571-87176348

• Address: Tangqi Industrial Park Yuhang Dis, HangZhou , Zhejiang , China

• Email:

• Website: https://www.ehaseflex.com/

• Business Description: Ehase-Flex is one of the most famous brand in metal flexible joint and expansion joint in Taiwan, with more than 40-year experience in manufacturing flexible joint, expansion joint, flexible sprinkler hose, flexible tube, gas connector, rubber joint.

  We founded our factory in China mainland in 2006 - Our company had obtained the quality control system ISO9001.

  Our products are FM, UL, CCC, CSA , SGS approved and 100 % tested before delivery.

  With high quality our products are widely used in many field such as petroleum, chemical, semiconductor, electronics, machinery, electric power, ship building, nuclear energy, and have got highly recognized among customers both domestic and overseas.

  We have customers such as SAMSUNG, BMW, DUPONT, LG, MIXC MALL, Hyatt hotel, Marriott Hotel.
