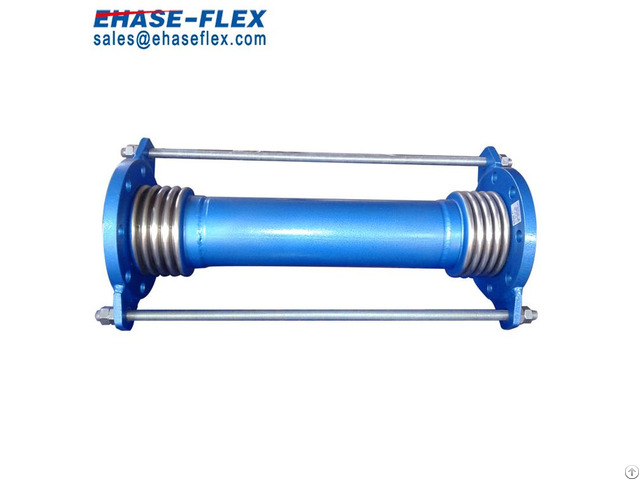

Bellows Expansion Joint With Stainless Steel 304 - China

Quick Details

Place of Origin: Zhejiang, China (Mainland)

Brand Name: Ehase-Flex

Model Number: EH-810/810H

Type: Universal Expansion Joint

Material: Stainless Steel

Technics: Welding

Connection: Flange

Shape: Equal

Head Code: Round

Product Name: Universal Expansion Joint

Application: Absorb the movement

Nominal Bore: DN50-DN600

Movement: Axial: +-5mm; laternal: +-50mm

Working Pressure: 16bar, 16bar, 25bar.

Temperature: max to 1000℃

Flange Standard: JIS, ANSI, B, S, JB.

OEM or ODM: Allowed

Certificate: ISO

Standard: EJMA Supply Ability

Supply Ability: 80000 Piece/Pieces per Year H.

S Code: 7302.29 Packaging & Delivery

Packaging Details

Carton Box, Pallet, or Plywood Case No Unacceptable Packaging Material or Bamboo Products been Used as Packing

Port Shanghai or Ningbo or Any Port in China

Lead Time : Normally 20 Days; Depends on Customer's Requirement

Product Description

Bellows Expansion Joint With Stainless Steel 304 Carbon Steel Flange It should be installed offset to absorb the movement.

When installed, it must be at the fully extended length and at 90° to the line of movement.

Tie tie rods can't be adjusted or removed to ensure the proper functioning of the unite.

Application

1 - One Plane System: It can be instead of two hinged joints to absorb the movement

2 - Two Planes System:

It can be instead of two gimbal joints.

Maybe used in the offset pipe as shown

Construction

ITEM PARTS1 CONSTRUCTION MATERIAL REMARK

1 Bellows SUS304 SUS316/321

2 Flange SS400 SUS304/316/321

3 Tube End SGP SUS304

4 Tie Rods SS400 SUS304 Specification

DN Total Length Bellows Length Axial Mov.

Lateral Mov.

Working Pressure(Max.

)

(mm) (mm) (mm) (mm) (mm) EH-810 EH-810H

50 350 40 ±5 ±50 10 16

65 400 50 ±5 ±50 10 16

80 400 48 ±5 ±50 10 16

100 500 48 ±5 ±50 10 16

125 600 60 ±5 ±50 10 16

150 600 75 ±5 ±50 10 16

200 700 75 ±5 ±50 10 16

250 700 100 ±5 ±50 10 16

300 1100 100 ±5 ±50 10 16

350 1200 100 ±5 ±50 10 16

400 1200 120 ±5 ±50 10 16

500 1300 120 ±5 ±50 10 16

600 1400 120 ±5 ±50 10 16

*Specifications stated abvoe are the standard.

We can design and manufacture according to customer's requirement *Flange Standard: JIS, ANSI, DIN, B.S. JB etc Features

1 - Excellent Welding Technology, like a fish swimming in water.

2 - Omega Bellows, More flexible and longer service life.

Production Capacity

Flexible Sprinkler Hoses: 350, 000pcs per Month

Flexible Joints/ Expansion Joints: 80, 000pcs Annual

Gas Connector: 300, 000pcs Per Month Water Connectors: 5, 000, 000m Annua

Packaging & Shipping

Carton Box, Pallet, or Plywood Case FAQ

Q : Are you trading company or manufacturer?

A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.

Q: Do you have products catalog?

A: Yes, we have.

Please tell me your email or instant messager, we will send our catalog.

Q: Can you provide drawings and technical data?

A: Yes, our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?

A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?

A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK.

Q: How long is your delivery time?

A: Depends on QTY, but normally no more than 20 working days.

Q: Can the products be manufactuered by customer's requirement?

A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Q: Visting company is allowed or not?

A: Yes, we welcome customers visiting our company.

We are located in Hangzhou, Zhejiang Prov., China
