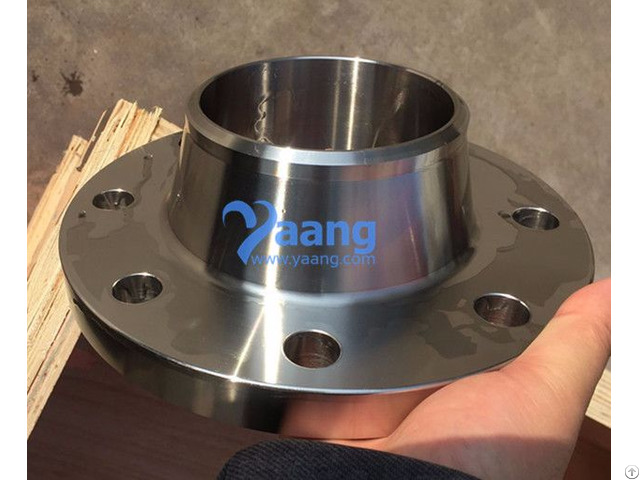

B16 5 A182 F304 304l Wnrf Flange - China

Size: 4" (DN100)Place of Origin: Zhejiang, China (Mainland)Brand Name: YaangStandard or Nonstandard: StandardMaterial: Stainless Steel 304, etcTechnics: ForgingType: F304/304L WNRF FlangeShape: RoundStandard: ASME, ANSI, etc

Packaging & Delivery Packaging Details: Seaworthy plywood case or as customer requests

Delivery Detail: 2 - 15 days after receiving the deposit

Specifications B16.5 A182 F304/304L WNRF Flange 4 Inch SCH40S 150LBS

1 - Material: Stainless steel 304, 304l, etc

2 - Size: 4" (DN100)

3 - Standard: ASME B16.5, etc

4 - Type: F304/304L WNRF Flange

5 - Pressure: 150#, 300#, 600#, etc Composition ranges for 304L grade stainless steel

Grade C Mn Si P S Cr Mo Ni N 304L min.

max.

- 0.030 - 2.0 - 0.75 - 0.045 - 0.030 18.0 20.0 - 8.0 12.0 - 0.10 B16.5 A182 F304/304L WNRF Flange 4 Inch SCH40S 150LBS

1 Material: Stainless Steel: such as 304, 304L, 316, 316L, 321, 310S, 904L, S31803, F51 and so on.

2 Standard: GB, JIS, BS, DIN, ANSI and Non standard

3 ANSI Class: 15, 030, 040, 060, 090

4 Size: 1/2" - 24"

5 Type: Slip-on flanges, Blind flanges, Lap joint flanges, Welding neck flanges, Plate flange, Socket welding flanges and Treaded flanges

6 Pressure ratings: Class: 150 300 400 600 900 1500 and 2500

PN: 6 10 16 25 40 64 and 160, 5K - 40K and so on

7 Sealing surface: FF, RF, LJ, FM, R.T.J, R.

J and so on .

8 Production process: raw material-cutting-heating- forging-heat treatment-maching-inspect ion.

15 Application: petroleum, chemical, power, gas, water, linepipe, heat exchanger, shipbuilding, construction, etc.

16 Tolerance: not less than +_8% of normal wall thickness.

welding neck flange

Weld neck flange is a type of pipe flange that incorporates a cast-in neck that is welded to the pipe.

Unlike a plain flange that is slipped over the pipe prior to being welded into place, a weld neck flange has a spout-like neck that is beveled to match up to the pipe.

Once the pipe is beveled to match the weld neck flange, a perfect V shape is created in which a butt weld is placed to connect the two components.

APPLICATIONS : 1 - petrochemical industry

2 - Pharmaceutical industry 3 - Food industry

4 - Aviation and aerospace industry

5 - Architectural decoration industry

6 - Oil and gas industry

Other Features: 1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant

2) We also produce flange with special specifications according to customers’ requirements;
