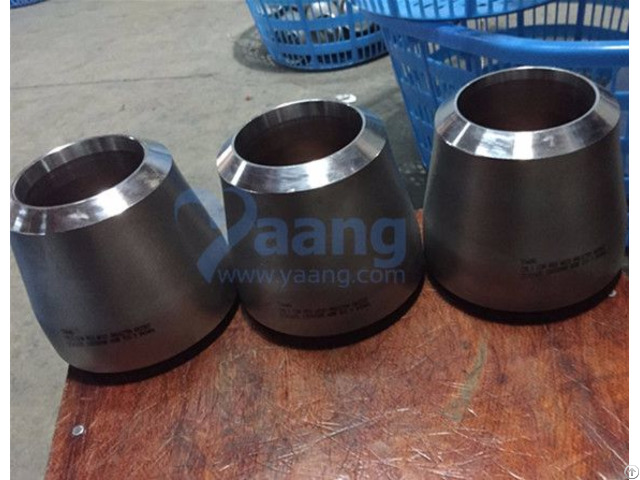

Astm A815 Sdup Uns32750 Gr2507 Seamless Concentric Reducer Sch160s - China
price: 999.00 Dollar US$
Material: Super Duplex Steel 2507Technics: Cold FormedType: Concentric ReducerPlace of Origin: Zhejiang, China (Mainland)Brand Name: YaangConnection: WeldingShape: EqualHead Code: Round
Packaging & Delivery Packaging Detail: Plywood case or fumigation woodern case
Delivery Detail: Usually 2-10 days depend on the quantity
Specifications ASTM A815 SDUP UNS32750 GR2507 Seamless Concentric Reducer
1 - Size: 4" - 3" (DN100 - DN80)
2 - Wall thickness: SCH160S
3 - Material: Super Duplex Stainless Steel: 2507, etc Con.
Reducer (super duplex concentric reducer, super duplex stainless steel concentric reducer)
Chemical Composition Of ASTM A815 UNS32750 GR2507 Seamless Concentric Reducer
GRADE
C≤
Mn≤
Si≤
S≤
P≤
Cr≤
Ni
Mo
Cu≤
N
S32750
(2507)
00Cr25Ni7Mo4N
0.03
1.20
0.8
0.020
0.035
24.0/26.0
6.0/8.0
3.0/5.0
0.50
0.24/0.32
Size: 4" - 3" (DN100 - DN80)
Material: Carbon Steel: ASTM: SA105N/A105, ASTM SA350 LF2, etc
Stainless Steel: ASTM A182 F304/304L/316/316L, etc
Alloy Steel: ASTM A182 F1/F5/F9/F11/F22/F91, Etc.
Duplex stainless steel: ASTM A182 F51/F53/F55/F60, etc
Super Duplex Stainless Steel: S32750/2507, UNS32760, etc
Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800, Hastelloy C276, Hastelloy C276, Hastelloy B1/B2/B3, Alloy 20, etc
Cu-Ni: 90/10, 70/30, etc
Standard: ASME/DIN/ISO/, etc
Connection: Welding
Wall thickness: SCH10S
Finish: Mirror polish, semi bright etc
Seamless Concentric Reducer Drawing
Nominal Diameter Large Diameter Small Diameter Run Thickness
in in in in in
4 x 3 4.50 3.50 4.00 0.237 2507 seamless concentric reducer
ASTM A815 SDUP UNS32750 GR2507 Seamless Concentric Reducer is used to join pipe or tube sections on the same axis.
They provide an in-line conical transition between pressurized pipes of differing diameters.
A pipe reducer can be a single diameter change or a multiple diameter change.
The pipes cannot recognize what the outside configuration of the pipe reducer looks like.
The pipe flow is affected by the inside diameter conical transition configuration which can be axially moved and externally reconfigured to provide for more economical reducer fittings.
Thus, seamless concentric reducers connect pipes of unequal size but have a common centerline.
In other words, it is a type of pipe fitting with different size ends to join pipes of different diameter that joins pipe sections on the same axis.
2507 seamless concentric reducers are designed with the small and large diameters on opposite ends and joined by a cone shaped transition section.
They are available in both seamless and welded construction.
Use of 2507 seamless concentric reducer (uns32750 seamless concentric reducer) is as follows:
2507 seamless concentric reducer will transition gracefully between the piping and the pump.
The 2507 seamless concentric reducers help in transporting slurries or abrasive liquids.
They are useful in services where cavitation is present.
When transporting between flanges or pipes of different ratings and wear protection is necessary, 2507 seamless concentric reducers are ideal.
2507 seamless concentric reducers are used in discharge of the pump.
Application range: Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
Company Contact:
- Posted By: yaang
- Phone: 8618267732328
- Address: 325025 , wenzhou , zhejiang , China
- Email:
- Website: https://www.yaang.com
Published date: February 14, 2017 - Modified date: February 14, 2017
- Business Description: Yaang Pipe Industry Co., Limited is a leading manufacturer and supplier of nickel alloy and stainless steel products, including Super Duplex Stainless Steel Flanges, Stainless Steel Flanges, Stainless Steel Pipe Fittings, Stainless Steel Pipe.
Yaang products are widely used in Shipbuilding, Nuclear power, Marine engineering, Petroleum, Chemical, Mining, Sewage treatment, Natural gas and Pressure vessels and other industries.
