Asme B16 5 A182 F316l Wnrtj Flange - China

Size: 2"Material: Stainless Steel 316L, etcPlace of Origin: Zhejiang, China (Mainland)Brand Name: YaangStandard or Nonstandard: StandardTechnics: ForgedConnection: WeldingShape: RoundStandard: ASME, etcType: 316L WNRTJ Flange Packaging & Delivery

Packaging Details: Seaworthy plywood case or as customer requests

Delivery Detail: 2 - 10 days after receiving the deposit Specifications ASME B16.5 A182 F316L WNRTJ Flange 2 Inch Sch40 CL300

1 - Material: Stainless Steel 316L, etc

2 - Size: 2"

3 - Standard: ASME, etc

4 - Pressure: 300#, etc

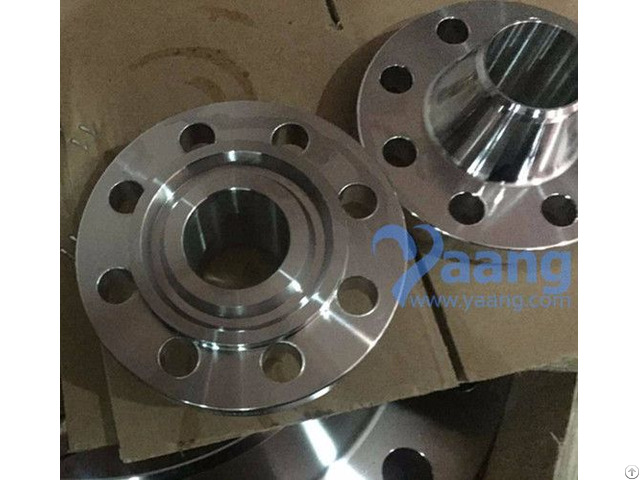

Stainless Steel 316L WNRTJ Flange has a long tapered hub and are often used for high pressure applications.

When ordering a weld neck flange, it is important to specify the schedule pipe is being used for.

This is because the inside diameter of the flange will match the inside diameter of your pipe.

The buttweld joint this flange has with the pipe along with the tapered hub, makes this flange very resistant to dishing and a very sturdy connection.

Type

316L WNRTJ Flange

Size

2" WT: Sch40

Standards

SO, WN, SW, TH, LJ, BL, PL, etc

Material

Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L

Carbon Steel: ASTM A234 WPB, WPC ASTM A105 WPHY 42, 46, 52, 56, 60, 65, 70

Alloy Steel: ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91

Duplex Stainless Steel: F51, 2205, F53, 2507, etc

Surface treatment

Chamfering

Applications

Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

Stainless-Steel-Flange s-wwwyaangcom Composition ranges for 316L stainless steel Grade C

Mn

Si

P

S

Cr

Mo

Ni

N

316L

Min

-

-

-

-

-

16.0

2.00

10.0

-

Max

0.03

2.0

0.75

0.045

0.03

18.0

3.00

14.0

0.10 Mechanical Properties

Mechanical properties of 316L stainless steels.

Grade

Tensile Str

(MPa) min

Yield Str

0.2% Proof

(MPa) min

Elong

(% in 50mm) min

Hardness

Rockwell B (HR B) max

Brinell (HB) max

316L

485

170

40

95

217 Grade Specification Comparison

Grade specifications for 316L stainless steels.

Grade

UNS

No

Old British

Euronorm

Swedish

SS

Japanese

JIS

BS

En

No

Name

316L

S31603

316S11

-

1.4404

X2CrNiMo17-12-2

2348

SUS 316L APPLICATIONS: 1 - Petrochemical industry

2 - Pharmaceutical industry

3 - Food industry

4 - Aviation and aerospace industry

5 - Architectural decoration industry

6 - Oil and gas industry

Other Features: 1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant

2) We also produce flange with special specifications according to customers’ requirements;

Where can we find the high quality ASME B16.5 A182 F316L WNRTJ Flange.
