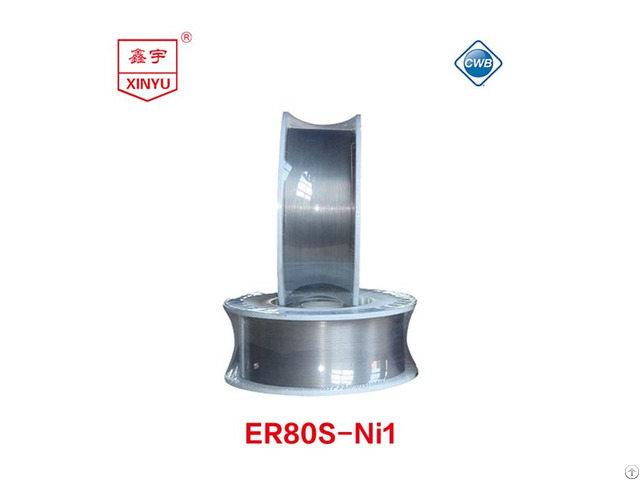

Xinyu Non Copper Coated Welding Wire - China

ER80S - Ni1 Gas Welding Wire Supplier Specification： AWS ER80S - Ni1 G B ER55 - Ni1

Shieding Gas： 80%Ar + 20%CO2 Characteristics：

( 1 ) The ER55 - Ni1 welding wire contains 1%Ni content, it has good plasticity and toughness

( 2 ) It’s used to weld steel of corresponding strength level, such as ships, bridges, pressure vessels, boilers, etc.

Precautions：

( 1 ) Adequately clear the oil, rust, moisture, dust and other debris of the welded parts.

( 2 ) When heat input is too big, it can reduce impact value, so welder should pay attention to the choice of welding current.

One chemical composition of the weld metal sample (wt%)

C Si Mn P S Ni

0.08 0.51 0.96 0.007 0.003 0.92 One mechanical properties of the weld metal sample

Tensild Strength

MPa Yield Strength

MPa Elongation

% Impact value ℃ J

580 500 26 -45 125 The specifications of the product and welding condition (DC+)：

Dia (mm)

Welding Condition 1.0 1.2 1.4 1.6

Short Circuiting Transfer Current A 80 ~ 160 100 ~ 210 - - Voltage V 16 ~ 22 17 ~ 22 - -

Spray Transfer Current A 180 ~ 280 200 ~ 300 210 ~ 320 220 ~ 330 Voltage V 24 ~ 30 24 ~ 30 24 ~ 32 24 ~ 32 We are Welding Wire Manufacturer and provide Quality High Strength Steel Welding, Non Copper Coated Wire, Submerged Arc & Stainless Steel Welding Wire.
