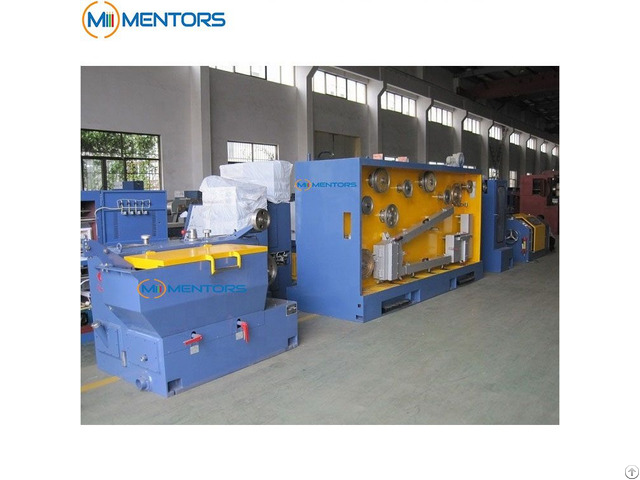

Wire Drawing Machine With Annealing - China

1 - Application:

This type is used for drawing copper wire and other alloy wire with annealer from 2.6-3mm to 1.13-2.78mm.

2 - Main feature:

This machine is mainly used for drawing and annealing copper wire 1.13-2.78mm from 3mm.

Finished wire is wound by the single bobbin take up machine or drop coiler.

Machine type SY-9DHT

Control system PLC with touch screen

Inverter control Dual inverter control

Drawing dies No.

/max.

9

Inlet diameter Ø 2.6- 3.0mm

Out diameter Ø1.13- 2.78mm

Drawing line speed 1200mpm/max

Slip ratio of m/c 18%

Fix speed capstan slip ratio 15.5%

Frame Ironed cast

Capstan Ceramic plasma capstan

Main motor 55kw

Spooler motor 11kw

Capstan dia.

(max) Ø 300mm

Fix speed capstan dia.

Ø 300mm

Dia.

of annealing Ø 350mm

Annealing voltage DC 0-60V

Annealing current DC 2500A

Protection type Steam or nitrogen

Spool bobbin size Ø 500mm-630mm
