Welding Wire For Automotive Sheet Metal - China

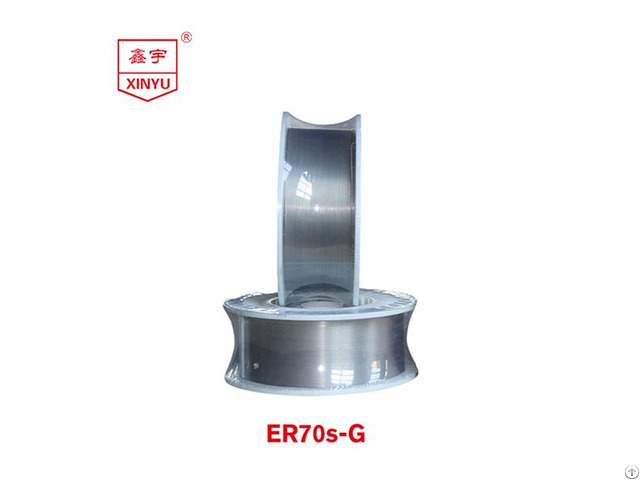

ER70s-G ER50-G Welding Wire Specification AWS ER70S-G J I S YGW15 G B ER50-G

Shielding Gas 80%Ar+20%CO2 Feature & Use：

( 1 ) Operating condition is wide, from low to high current.

It is a kind of solid wire.

( 2 ) Containing special alloy, its arc is stable even in high current.

( 3 ) Adapt to 490 MPa steel, like ships, steel structures, and machinery etc.

Notice of ER50-G Welding Wire：

1 - Please use specialized welding gas, eg: purity of CO2≥99.5%, H2O≤0.005%, Ar≥99.99%.

Gas flow: 20~25L/min.

2 - Wind affects arc and welding pool, please take steps to block the wind.

3 - There is smoke when welding, pay attention to ventilation.

4 - Distance between Tip and base steel is about 15mm when current is below 250A; and 20~25mm when current is above 250A.

5 - Welding materials should be stored in dry places.

6 - Please check the welder, wire feeder, gas regulator and heater before operation.

7 - Please keep the percentage of mixed gas stable and keep gas pressure stay the same.

8 - As to thin steel plate, downward welding in the inclined position or forward welding is recommended, (pictures are followed below).

9 - Please move plastic spool and basket spool in a correct way.

One chemical composition of deposited metal (wt%)：(80%Ar+20%CO2)


C Si Mn P S

0.08 0.42 1.04 0.016 0.025 Size & Current (DC+)：

Diameter (mm) 0.8 0.9 1.0 1.2 1.4 1.6

Current

(Amp) PA 50 ~ 180 50 ~ 200 50 ~ 220 80 ~ 350 100 ~ 470 200 ~ 550 EGW 50 ~ 120 50 ~ 140 50 ~ 140 50 ~ 160 100 ~ 180 — PE 50 ~ 100 50 ~ 120 50 ~ 120 50 ~ 140 — — We are Welding Wire Manufacturer and provide Quality High Strength Steel Welding, Non Copper Coated Wire, Submerged Arc & Stainless Steel Welding Wire.

If you are interested, please visit our website to contact us immediately.
