Steel Rectangular Tube Roll Forming Machine - China

Steel Rectangle Pipe Roll Forming Machine

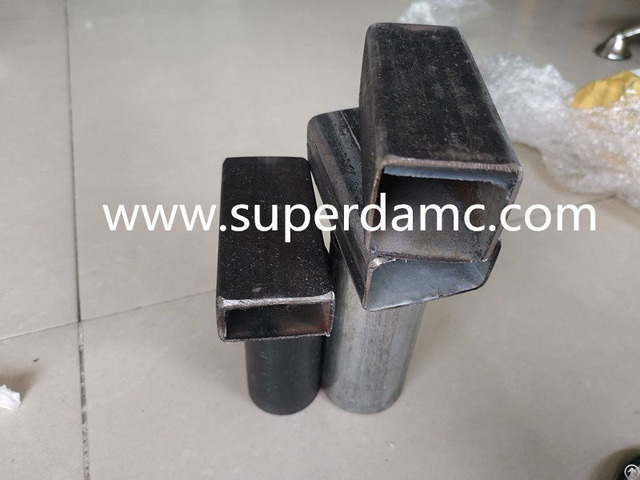

Steel round pipe how to change into rectangle pipe.

Rectangle size 1"*2", 1"*3", 1"*4" etc size all available.

Input round pipe size is import for making shape rectangle tube.

Steel Round Pipe change into square & rectangle pipe forming machine operation guide 1 - Develop safe operating procedures.

Do not touch the mold during the operation of the unit.

If you need to touch it during work, your hands should be placed in the direction of the pipe.

Operators should have fixed positions, not change at will, and keep a record of shifts.

2 - Before driving, check whether the lubrication points of the steel square tube forming machine are filled with corresponding lubricants.

Pay special attention to the high-speed lubricating grease that is relatively high-temperature resistant to the main shaft of the flying saw.

Fill it once every two days, two or three times each time.

It should not be added too much.

If the heat dissipation is not good, it will cause excessive heating and even bearing dead.

3 - The temperature of the welding extrusion is too high.

It is recommended to use a synthetic composite aluminum-based grease (SY1414-80) that can withstand high temperatures and use under humidity conditions.

The large hexagonal nut and the upper pull plate should be adjusted at the same time to avoid that the squeeze roller is not perpendicular to the plane of the worktable, which may damage the thread of the squeeze roller.

At the same time, pay attention to check the squeeze roller bearings.

The working environment here is harsh and the bearings are easily damaged.

If abnormalities are found, the bearings should be replaced in time to avoid greater damage.
