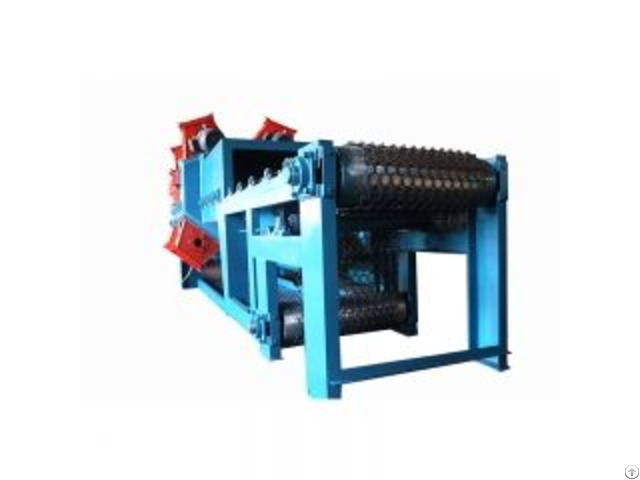

Qwd Series Wire Mesh Belt Shot Blasting Machine - China

Shot Blasting Machine, shot blasting wheel

Item No: 89

Product Description

PUHUA offers a wide variety of wheel blast equipment in several configurations.

Mesh belt machines have become one of the more popular systems.

A key advantage with a mesh belt machine is that the parts are exposed to the blast wheels from above and below.

Nearly complete coverage is achieved without the necessity of re-orienting the parts given they are transported on a wire mesh belt.

In-line unit type, parts are placed on an endless wire mesh belt and conveyed through a tunnel with multiple blast wheels.

Parts can either be manually or automatically loaded and unloaded depending on your process requirements.

It is good candidates for parts where part on part impingement is unacceptable.

Technical parameters

No.

Item Unit Data

1 Machine overall dimensions (L*W*H) MM About 7000 x 2870 x 5400

2 Height from ground to mesh belt MM 1400

3 Feeding entrance size (Width*Height) MM 1000*500

4 Max.

loading weight of single workpiece KG 65

5 Cleaning speed m/min 1~2.5 (according to different cleaning requirements

can be adjusted by stepless frequency conversion

6 Rust removal standard Sa2.5

7 Dealing with material and intensity range Steel, Stainless, Aluminum, etc

8 Surface roughness μ 20~75(depends on the shot size)

9 Total power KW About 53.1

10 Compressed air consumption m³/min 0.3

11 Compressed air pressure MPa 0.5-0.7

12 Foundation No pit, waterproof

13 Noise level dB ≤95

Reply your inquiry in 24 working hours; Experienced staffs answer all your questions; Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff; Professional factory.

We are manufacturer, specializing in producing all kinds of machinery for more than 16 years, competitive with good quantity
