Nickel Alloy Wire Drawing Machine - China

price: 11800.00 Dollar US$

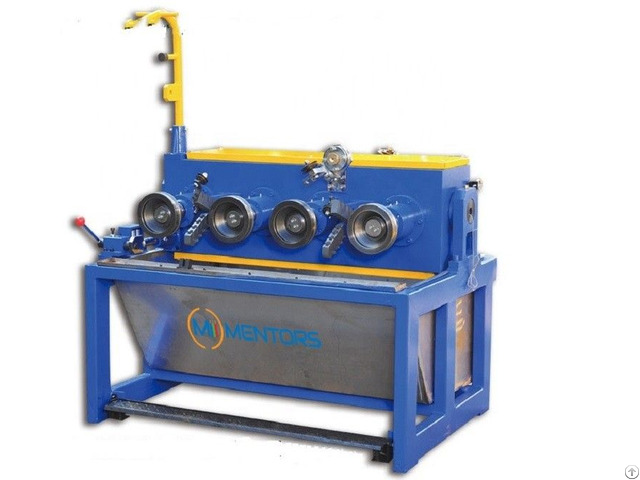

Nickel Alloy Wire Drawing Machine

Products Photos Catalog Nickel Alloy Wire Photos Catalog

1 - Application:

This wet type wire drawing machine is special for drawing Nickel or Copper Alloy Wire with size range 0.20-1.20 by 9 dies type.

2 - Main feature:

1)Max.

Dies Qty: 9

2)Inlet wire size: 1.50mm

3)Max speed: 240m/min

4)Lubrication type: Full immersion

5) Traversing type: Stepping motor

3-Parameters:

Machine type SY-FZ9

Control system Dual inverter+PLC+HMI

Drawing dies No.

/Max.

9

Max.

Inlet diameter Ø 1.50mm

Outlet diameter Ø 0.80-1.20mm

Max.

Drawing line speed 240m/min

Capstan raw material Tool steel

Main motor 7.5KW

Spooler motor 1.1KW

Spool bobbin size DIN160/200/250

or according to customers requirements

Traversing unit Stepping motor

Transmission type Teeth belt + Flat belt

Lubrication type Full immersed

Power source 380V 50/60HZ or others


Company Contact:


  • Phone: 008615252617481

  • Address: Yangshe Town, Zhangjiagang , Jiangsu Province, China

  • Email: Email


Published date: September 14, 2023

  • Business Description: Mentors is a professional manufacturer and exporter of wire drawing machine & cable making machine in wire and cable field since 2008.

    Mentors Group is able to provide a whole solutions.

    Also our engineer team with 23 years of R&D and production experience in the field of wire drawing machine and other cable making machine.

    Cost-effective,highly efficient,reliable and easy-to operate machine is what we deliver.

    The independent research and development Copper Wire Drawing Machine we have already supplied to world well-know company such as Sumitomo, Jiangxi Copper Corporation(Fortune global 500 companies).

    And New Design Remote Controlled Full Automatic cable making equipment, which can load and unload bobbin without operator, to help our customers develop faster.

    Mentors will continue to combine the advanced technology with China manufacturing advantage, provide wire drawing machine and cable manufacturing machine with European Standard to worldwide customers.
