Cnc Drilling And Milling Machine - China
price: 25000.00 Dollar US$

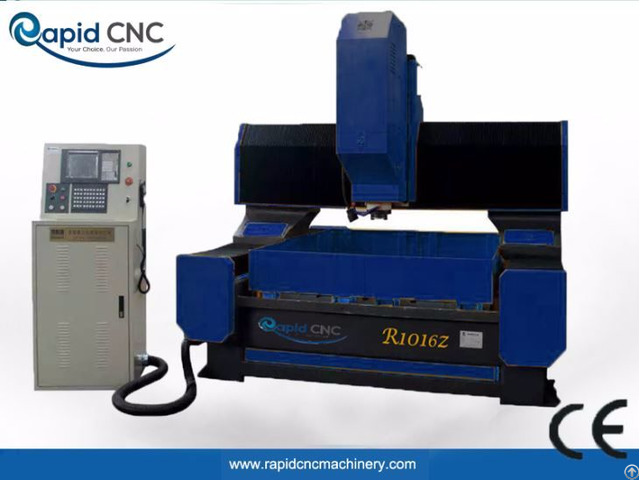

CNC Drilling And Milling Machine R1016Z
Features: 1 - T slot table surface, easy to fix the material.
2 - Adopted CNC slider power head(Z axis ), Automatic switch between forward and backward, high efficient, low cost, easy operation.
3 - It adopted high precision BT40 spindle, automatic air cylinder, easy to change tools .
4 - All axis adopted high precision square liner orbits, AC servo+ball screw driving, flexible, accurate.
5 - metal fragments automatic carry away by chain plate and dust carrier.
Automatic lubrication .
Applications:
Mainly used in the architecture, Bridge, tower and other steel business .
For the metal plate drilling holes and surface milling .
It can also used for boiler, Petrochemical Industry, for pipe, flue-splitting board and flange’s holes drilling.
Through holes, blind holes, ladder holes etc, all could be done by this machine .
CNC drilling and milling machine R1610Z.
jpg Technical parameters:
No
Description
Parameter
1
Travel (X/Y/Z)
1000X1600X300mm
2
Work piece height
less than 370mm
3
Table type
T slot cast iron table, hydraulic fixing
4
Machine Structure
Whole cast iron.
5
Table Surface
Cast steel
6
Driver Motor
Servo
7
Transmission
Special purpose made lead screw
8
Spindle motor
4KW/7.5KW/11KW
9
Spindle speed
10-2000 RPM/min
10
Precision
±0.015/300mm
11
Repeat positioning precision
<0.01mm
12
Max travel speed
10000mm/min
13
Working speed
1000-8000mm/min
16
Engraving code
G-code /U00/mmg/plt
17
Software environment
window98/2000/XP
18
voltage
AC380/50HZ
19
Machine weight
2050kgs
20
Machine dimension
1550*2130*1800mm
Company Contact:
- Posted By: Jinan RapidCNC machinery Co.,ltd
- Phone: 008618615288840
- Address: No.168-1, Huashan Industrial Area,, Jinan City (济南市), Shandong , China
- Email:
- Website: https://www.rapidcncmachine.com
Published date: December 19, 2017
- Business Description: Manufacturer of cnc router machine , cnc laser cutting machine , plasma cutting machine , cnc drilling and milling machine , cutting plotter etc .
