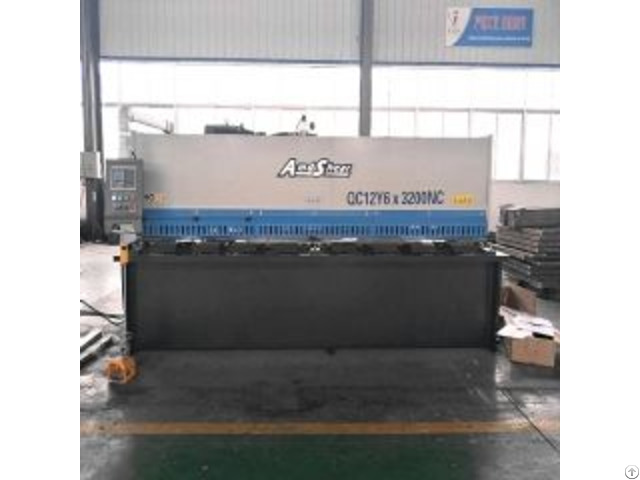

Amd 357 Cnc Electric Hydraulic Shearing Machine - China

smooth hydraulic cutting machine, big shearing machine Item No: 40

1 - The frame is steel-welded construction, vibrating to eliminate stress, with high strength and good rigidity.

2 - Hydraulic driven and returning stroke is activated by the accumulator or nitrogen cylinder smoothly and promptly.

3 - The sheet is moved easily through rolling ball equipped on worktable and protect the surface of sheet plate.

4 - Closed loop control system is composed of NC controller and the encoder.

It has the automatic function of inspection and compensation.

5 - The back gauge driven by servo motor adopts rolling ball screw, rolling guiding way, so it's positioning precision could reach 0.10mm.

6 - There is a display to count the number of cutting, the stroke of beam could be adjusted stepless.

7 - The clearance of blades could be adjusted by hand wheel, the value adjusted is display on the indicating plate.

8 - Full machine is guarded with safety guard with interlocker to prevent the operator from injured.

Model Shear size Shear Angle Strodes Backgauge

Range Main

Motor Weight Overall Dimensions

L×W×H

QC12Y-4×2000 4×2000 1 ° 30’ ≥21 20-600 7.5 4, 650 2540×1610×1650

QC12Y-4×2500 4×2500 1 ° 30’ ≥18 20-600 7.5 5, 500 3140×1610×1650

QC12Y-4×3200 4×3200 1 ° 30’ ≥14 20-600 7.5 6, 600 3840×1610×1650

QC12Y-4×4000 4×4000 1 ° 30’ ≥10 20-600 7.5 7, 550 4680×1705×1700

QC12Y-4×5000 4×5000 1 ° 30’ ≥10 20-600 7.5 16, 000 5786×2200×2160

QC12Y-6×2000 6×2000 1 ° 30’ ≥22 20-600 7.5 5, 100 2540×1960×1650
