Replacement Screens for 500 Series Shale Shakers – PWP

Technical Parameter Material: stainless steel 304/316/316 L.

Construction Type: PWP (perforated wear plate).

Wear Mesh Shape: rectangle.

API RP 13 C Designation: API 20 – API 325.

Size: 1050 × 695 mm.

Weight: 6.2 kg.

Series: DX, DF, HP optional.

Color: green.

Package: 2 pcs per carton, packed in wooden case.

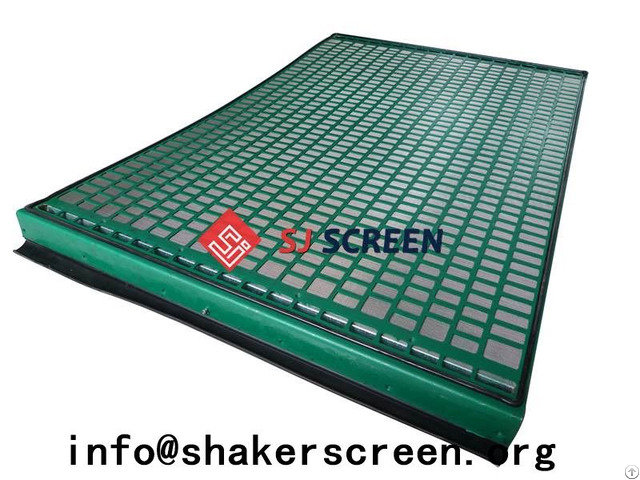

Replacement PWP shale shaker screen for 500 series shale shaker.

FLC 500 flat shaker screen is designed for the replacement screen of FLC 500 series shale shakers.

It is constructed with two or three layers of 304 or 316 stainless steel wire mesh cloth, and then combined together with a steel backing plate.

The FLC 500 PWP screen features a single side quick-lock tension system that reduces panel replacement time.

Adaptable Shale Shaker Model SJ-PWP 500 shaker screens are used as the substitute screen for FLC (Flo-line Cleaner) 503 shaker.

FLC (Flo-line Cleaner) 504 shaker.

FLC (Flo-line Cleaner) 503 drying shaker.

FLC (Flo-line Cleaner) 504 drying shaker.

FLC (Flo-line Cleaner) 513 shaker.

FLC (Flo-line Cleaner) 514 shaker.

FLC (Flo-line Cleaner) 513 VE (Vapor Extraction).

FLC (Flo-line Cleaner) 514 VE (Vapor Extraction).

Competitive Advantage

Stainless steel 304/316 wire mesh for longevity.

Quick-lock tension system, excellent trapping (dreg) effect.

Easy screen inspection, removal, and installation.

Increase shaker capacity and reduce mud loss.

Scientific & reasonable cost control system for competitive price.

Higher flow rates without sacrificing cut point integrity.

API RP 13C (ISO 13501) compliant.

Adequate inventory in the shortest time to meet customers' demand.

Warranty: 1 year.

Working Life: 400–450 hours.

Performance Parameter

Download Catalogue

Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Layer No.

Non-Blank Area (sq.

ft)

SJ-PWP 500-A325 DF API 325 0.39 44 2/3 4.05

SJ-PWP 500-A270 DF API 270 0.67 57 2/3 4.05

SJ-PWP 500-A230 DF API 230 0.71 68 2/3 4.05

SJ-PWP 500-A200 DX API 200 1.32 73 2/3 4.05

SJ-PWP 500-A170 DX API 170 1.34 83 2/3 4.05

SJ-PWP 500-A140 DX API 140 1.89 101 2/3 4.05

SJ-PWP 500-A120 DX API 120 1.89 134 2/3 4.05

SJ-PWP 500-A100 DX API 100 2.66 164 2/3 4.05

SJ-PWP 500-A80 DX API 80 2.76 193 2/3 4.05

SJ-PWP 500-A70 DX API 70 3.33 203 2/3 4.05

SJ-PWP 500-A60 DX API 60 4.1 - 268 2/3 4.05

SJ-PWP 500-A50 DX API 50 5.17 285 2/3 4.05

SJ-PWP 500-A40 DX API 40 8.64 439 2/3 4.05

SJ-PWP 500-A35 DX API 35 9.69 538 2/3 4.05

SJ-PWP 500-A20 DF API 20 10.88 809 2/3 4.05

* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No: This represents the ease with which a liquid can flow through the screen.

Larger values represent higher volume handing.

Show Details

The back side picture of replacement shale shaker screen for FLC 500 series shakers.

FLC 500 PWP back view The close picture of replacement shale shaker screen for FLC 500 series shakers.

Quick-lock tension system The close up picture of replacement shale shaker screen for FLC 500 series shakers.

Handy handle for convenient operation Remarks: , FLC 500, PWP, DX, DF, HP are marks of Corporation.

ShengJia only produces the replacement screens but not original from .
