Spring Energized Metal Seal C Ring - China

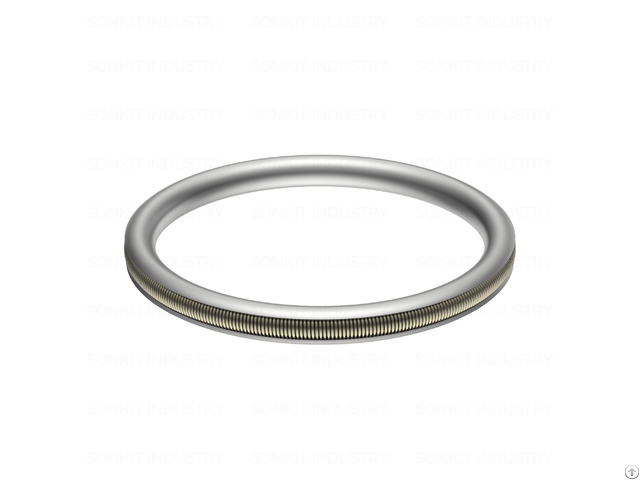

Spring Energized Metal C-Ring seal is based on a metallic "C" substrate, designed to be applied in extreme working conditions.

By default, Spring Energized Metal C-Ring seal for internal Pressure or external Pressure are system pressure energized, they require high bolting load and have good spring back.

Due to its special structure and material, Spring Energized Metal C-Ring seals can be used in working conditions such as high temperature (up to 750°C), cryogenic (low to -270°C), high pressure (up to 1500kgf/cm2), high vacuum (up to 1E-9 mmHg) and other extreme working conditions of static sealing.

Specifically, Spring Energized Metal C-Ring seal is an enhanced Metal C-Ring seal.

With an spring inside the substrate, Spring Energized Metal C-Ring can bear much greater load to support rough surfaces, and can also achieve much lower leakage rate.

Applications: Aerospace equipment's; Semiconductor; Cryogenic; Engines; Nuclear instruments; Heat exchangers; Reactors; Hot Runners; Oil & Gas; Flow meters; Chemical fibers; Food & medicine equipment etc.

Specifications: 1: Product specifications: Outer Diameter Range: 0.250'(6mm)-120'(3048mm)

Cross section Range: 1/32'(0.9mm)-1/2'(12.7mm)

Common product shapes: round rectangular or racetrack

(Customized product shapes also available)

2 - Available for internal, external and axial pressure

3: Functional temperature ranges from -270°C to 750°C even higher.

4: Functional pressure range from Ultra-vacuum to +300mpa.

5: A wide range of plating options reinforce a high level of sealing performance

6: Solid and elegant electroplating process.

7: Low leakage rate: 1E-10pa m³/s or even lower.

8: 3-year warranty period.

Metal Options: Alloy 718 • Alloy X-750 • Alloy 600 • 316 SS • 321 SS • 304 SS• Waspaloy

Plating Options: Silver • Nickel • Gold • Stannum • Copper • PTFE

Sonkit Is Your Sealing Design Facilitator Sonkit specializes in metallic seals, we serve customers from all kinds industries, include Global Fortune 500 Companies.

You can benefit from Sonkit from: Experienced research and technical support team

Stable and reliable electroplating process

High reliability with customized heating treatment and process control

High quality control with In-house test labs

Fast response within 24h

Ongoing improvement through Close co-operation with renowned universities and Research Institutes

Experiences from cooperation with Top500 Enterprise worldwide

To Ensure you get the high quality products, we provide: 100% strength test for weldment

Provide weld pass inspection report as required

Helium leak detection report

Static Pressure test to 200Mpa

Material and Coating inspection report

Dimension inspection report

For Inquiries, we provide quotation in 24 hours.

Company Contact:

• Posted By: Sonkit (Shanghai) Industry Technology Co.,Ltd.

• Phone: 13917192435

• Address: Building D, NO.123, Xinjin Rd, Qingpu Qu, Shanghaï , China

• Email:

• Website: https://www.sonkitsealing.com/

• Business Description: Sonkit Industry Technology Co., Ltd., founded in 2010, is a leading privately-owned company specializing in the development and manufacture of high-performance metallic seals.

  Since 2012, we have focused on producing top-quality metallic seal ring to meet the rigorous demands of various industries.

  In 2018, we further enhanced our capabilities by customizing advanced heat-treating equipment to ensure superior heat treatment quality control.

  Located in Shanghai, China, our state-of-the-art facility is equipped to research, develop, customize, and manufacture metal seal products designed for critical environments subjected to extreme temperatures, pressures, and corrosive media.

  Our products find applications in numerous industries, including flow meters, defense and military, nuclear power, mold manufacturing, chemical fiber production, semiconductor and vacuum pumps, aircraft engines, and pressure pipelines.

  Sonkit offers a comprehensive range of metal seals, including:

  Metal O-Ring Seals

  Metal C-Ring Seals

  Blade Metal C-Ring Seal (Helicoflex Delta)

  Metal V-Ring Seals

  Metal U-Ring Seals

  Metal E-Ring Seals (also known as W-Rings)

  Metal Comma-Ring Seals

  Why Choose Sonkit?

  Expert Team: Our experienced research and technical support team ensures innovative solutions and high-quality products.

  Reliable Processes: We maintain stable and reliable electroplating and heating processes, ensuring product consistency and reliability.

  Quality Control: Our in-house test labs are equipped with advanced testing equipment to guarantee the highest quality standards.

  Quick Response: We pride ourselves on our quick response times and excellent customer service.

  Collaborative Partnerships: We work closely with renowned universities and research institutes, and have extensive experience collaborating with top 500 enterprises worldwide.

  Short Lead Time: We offer an average lead time of just 4 weeks, ensuring timely delivery for your projects.

  Competitive Pricing: Our pricing is competitive, providing excellent value without compromising on quality.

  For product inquiries and customized sealing solutions, please contact Sonkit sales:

  Email: johnny@sonkit.

  cn

  WhatsApp : +86 13917192435

  Website: www.

  sonkitsealing.

  com

  Enh ance your operations with Sonkit's reliable and high-performance sealing solutions.
