Ngp Sc90 Reinforced Asbestos Composite Cylinder Head Gasket Sheet - China
price: contact company for price

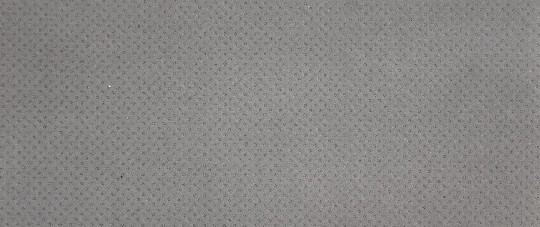

Manufactured from asbestos beater sheet with tanged (perforated) of
0.18mm ~ 0.25mm tinplate inserted reinforcement.
It is best material for
cylinder head gasket, exhaust gasket and other engine gasket seal.
Composite Type:
SC90-A Asbestos + Steel + Asbestos
SC90-B Asbestos
SC90-C Steel + Asbestos
SC90-D Steel + Asbestos + Steel
SC90-E Both Size Graphite Coating Reinforced Asbestos Composite Sheet
SC90-S Both Size Silicon Coating Reinforced Asbestos Composite Sheet
Product Data Sheet:
Density: 1.40g/cm3 Min (2.0g/cm3~2.60g/cm3)
Compressibility: 8%-12%
Recovery: 45% Min
ASTM F146 3# OIL 150 C × 5h
Thickness increase: 15% Max
Weight increase: 10% Max
ASTM F146 Fuel B R.
T × 5h
Thickness increase: 10% Max
Standard Sheet Size:
500mm x 1000mm
500mm x 1200mm
500mm x 1500mm
510mm x 1016mm
510mm x 1530mm
1000mm x 1000mm
1000mm x 1500mm
Thickness: 1.0mm ~ 2.5mm
The other size and thickness are optional or according to the requirements of customers
Company Contact:
- Posted By: Hefei Nordon Sealing Material Co.,Ltd
- Phone: 8655163825311
- Address: No.227,Yuping Road, Hefei , China
- Email:
- Website: http://www.sealing-material.com
Published date: July 1, 2013
- Business Description: We nordon sealing material co., ltd. specialize in manufacture sheet, gasket, packing and exhaust gasket and cylinder head gasket, gasket materials and seals gaskets for fluid and automobile sealing applications.
We make high quality engine cylinder head gasket sheet materials, laminates graphite gasket sheet materials, non asbestos & asbestos free gasket sheet, graphite gasket and non asbestos gasket at competitive prices for a wide range of industries.
We have been selling our products for 11 years in global market.
