Manufacture Alumina Ceramic Cylinder Bonded In Rubber As Wear Resistant Panel - China

Chemshun ceramic manufacturer abrasive resistant ceramic cylinder for rubber ceramic Product features:

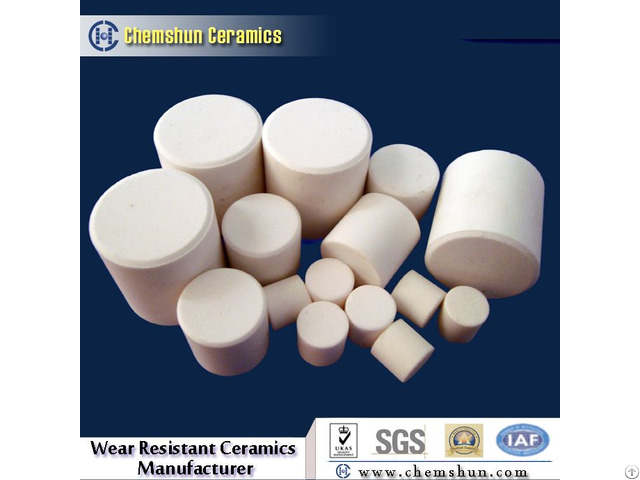

Chemshun alumina ceramic cylinder is mainly combined with high quality rubber to be used as wear protection material in mining industry, power plant, steel plant etc.

This ceramics rubber complex panel is a highly wear resistant surface of cylindrical alumina ceramic rods bound within a resilient rubber matrix.

The extremely hard ceramic elements provide unsurpassed resistance to wear, while the elastic properties of the rubber effectively dampen the impact forces.

Which is Used in heavy wear areas characterized by both impact & abrasion with small angle of impact where cost to life ratio is more important than low initial cost.

> High hardness

> Superior abrasion resistance

> Corrosion and chemical resistance

> Light weight

> Can be vulcanized in all kinds of rubber panel or conveyor Related products: Alumina ceramic cylinder Install the effect Size available (diameter * Height ) :

Pppular Sizes ( diameter * Height )

21*21 mm

20*20 mm

31.5*32 mm

40*15 mm

31*31 mm half cylinder

20*10 mm

21*21 half cylinder

More sizes and customized size acceptable Application industry:

> Mining industry

> Cement industry

> Coal handling industry

> Steel industry

> Port industry

> Power plant 1) Chemical Composition:

Al2O3 SiO2 CaO MgO Na2O

92~93% 3~6% 1~1.6% 0.2~0.8% 0.1%

2)Physical properties:

Specific gravity (g/cc) >3.60

Apparent porosity (%) 0

Flexural Strength (20ºC, Mpa) 280

Compressive strength (20ºC, Mpa) 850

Rockwell hardness (HRA) 80

Vickers hardness (hv) 1050

Moh's hardness (scale) ≥9

Thermal Expansion (20-800ºC, x10-6/ºC) 8

Crystal Size (μm) 1.3~3.0

Product packaging: Alumina ceramic cylinder Service:

Any requirment about chemshun Alumina Ceramic Liner Vulcanized Into Rubber and wear resistant ceramic product Backing, alumina ceramic rubber wear plate and Wear Resistant Rubber Ceramic Panels, please feel free contact us and chemshun we'll afford you the most suitable product and best service.

Export:

Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.
