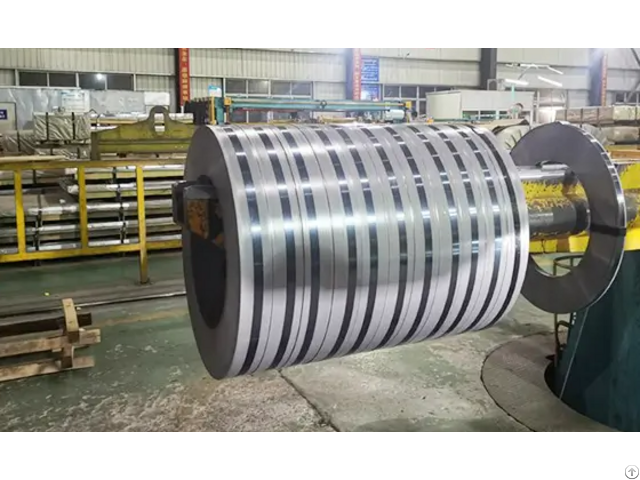

Hot Rolled Din 1 7225 Steel Coil Product Material - China

4140 Steel Round Bar Coil Sheet Plate Heat Treatment

Machinability

At the annealed condition, 4140 alloy tool steel has good machinability.

Forming

DIN 1.7225 steel has high ductility.

It can be formed using conventional techniques in the annealed condition.

It is required more pressure or force for forming because it is tougher than plain carbon steels.

Welding

4140 alloy steel can be welded using all advanced techniques.

But, the mechanical properties of it will be affected if it is welded in the heat treated condition, and post weld heat treatment should be performed.

Heat Treatment

1.7225 tool steel is heated at 845°C(1550°F) followed by quenching in oil.

Before hardening, it can be normalized by heating at 913°C (1675°F) for a long period of time followed by air cooling.

Forging

It is forged at 926 to 1205°C(1700 to 2200°F) Hot Working

4140 steel can be hot worked at 816 to 1038°C(1500 to 1900°F) Cold Working

1.7225 steel can be cold worked using conventional methods in the annealed condition.

Annealing

Heat it to 800℃ – 850℃, hold until temperature is uniform throughout the section and cool in furnace.

Normalizing

Heat 1.7225 alloy steel to 870℃ – 900℃, hold it until the temperature is uniform throughout the section, soak for 10 – 15 minutes and cool in still air.

Tempering

DIN 1.7225 steel can be tempered at 205 to 649°C (400 to 1200°F) depending upon the desired hardness level.

The hardness of the steel can be increased if it has lower tempering temperature.

For example, tensile strength of 225 ksi cab be achieved by tempering at 316°C (600°F), and tensile strength of 130 ksi can be achieved by tempering at 538°C (1000°F).

Hardening

DIN 1.7225 alloy steel can be hardened by cold working, or heating and quenching.

4140 Steel Coil Supply

We can harden and temper materials to meet your specific application requirements, have our own cutting processing equipment, have rich production experience, and specifications can be cut and customized according to your requirements.

We have specialized in the production of 4140 alloy steel for decades, providing 4140/1.7225/SCM440 alloy steel coils, round bars, square steel, flat steel, etc., as a professional 4140 steel coil supplier, if you have any AISI 4140/DIN 1.7225 steel requirements, Please contact us.

Songshun Steel is with you.

Dongguan Songshun Mould Steel Co., LTD which is an industrial and trading company with 3500-7000ts hydraulic forging machine.

We provide a great variety of steels, competitive price with good quality and keep the large stock are over 20000 tons.
