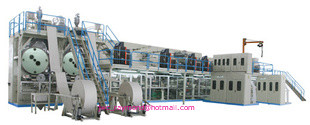

Full Servo Baby Diaper Machine Elastic Ear Loop Type - China

JWC-NK550-SV-EB

Main technical parameters:

1 - Designed speed: 280m/min

2 - Working speed: 550pcs/min(Small size) Normal type products

350 pcs/min (Small Size) Elastic Ear Loop type products

3 - Qualified rate: 97％ (The rate is compared with qualified products with gross output products within7.5 hours)

4 - Efficiency: ≥85％(The rate is compared real output with principle output within 7.5 hours)

5 - Installed capacity: 320KW (Including hot melt system)

6 - practical capacity: 260KW(Including hot melt system)

7 - Electric power supply: Three-phase & four-wire 380V/50HZ(Ground wire)

8 - Electric wire: 3x120mm2+1x50mm2+1x25mm2

9 - Lowest barometric pressure: 8kg/cm2

10 - Air compressor: ＞0.6Mpa, 1.8m3/min, 22kw(to be reference)

11 - Gross weight: 85000kg

12 - Noise: ＜85dB(A)

13 - Machine size: (32x8x5.5)M

14 - Working size: (38x12x8)M

15 - Color: Silver (According to order)

16 - Range of products: Five Sizes ( XL, M, S)

17 - Length of products(mm): 580(XXL), 540(XL), 500(L), 450(M), 390(S)

18 - Container: 4x40HQ+1x20GP

Company Contact:

• Posted By: Jiangsu JWC Machinery Co.,ltd

• Phone: 86051786986616

• Address: 3 huahai road, huaian , China

• Email:

• Website: https://www.sinojwc.com

• Business Description: JWC Group is set up since 1996 with area of S.

  M.

  60000 - We specializes

  in researching &developing hygienic products equipment, raw materials

  importing and exporting, hygienic products manufacturing.

  We are the

  top three manufacturer of hygienic products machinery in China with

  brand JWC.

  More than sixty models of hygienic products machines (they are baby diaper machine, adult diaper machine, sanitary napkin machine, sanitary pad machine, disposable under pad machine, disposable pet pad machine, disposable nursing pad machine, mask making machine, disposable shoe insole making machine ).

  Our production lines have been sold to more than 90 countries and areas.

  In the meantime, JWC trading company supplies different grades of raw materials for production and produce finished products of adult diapers.

  JWC Group got ISO9001 and CE certificate and wins a lot of national and provincial reputation and awards.
