Smart E Blackboard - China

PRODUCT DESCRIPTION

Smart e blackboard description

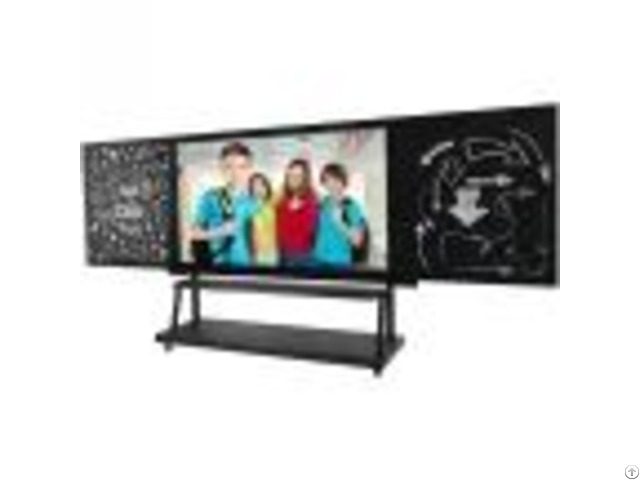

Smart e blackboard is a full 82 inch electronic interactive digital blackboard, designed for presentation and collaborative work in business and education.

Smart e blackboard consists of two writing boards on the left and right and a touch panel display in the middle.

It can support normal writing with ordinary chalk, dust-free chalk and various water pens.

The same area not only realizes the chalk writing function of the ordinary blackboard, but also provides high-definition display and interactive touch, including playing teaching courseware, videos, pictures, animations, annotations and other multimedia teaching functions, effectively combining traditional blackboards with multimedia teaching, Bring a better teaching experience.

Design features of smart e blackboard

* The infrared touch technology and the smooth screen provide you the familiar feeling of touching your Android device and iPhone.

The same operation of operating your phone and pad with sliding, dragging, zooming in and out, and touching, it is easy and simple for you to handle the interactive digital display.

* 10 points Infrared touch can make students and your colleagues work together on the screen and encourage more engagement and collaboration.

* Besides easy touch, it is also easy to connect and share.

With many VGA, HDMI, USB Touch ports, you can connect various devices through wires and these ports.

* You can also share through screen sharing software and wireless connection dongle.

Easily connect through easy touch.

You can write digital annotation and screenshot during a presentation and review them at any time.

Smart e blackboard characteristic

Shell and appearance Aluminum alloy surface arc angle design, pure black plane, three combination products, side port buttons, Side speaker on the lower side of the main screen

Overall dimension 4200L*1220W*100H (mm)

Power consumption ≤400W

Standby power ≤0.5W

Voltage 110-240V(AC)

Smart e blackboard operation system specification

CPU Dual-core A73 and dual-core A53, 1.5GHz

Operation system (standard) Android 8.0(No license)

RAM 3G

Memory 32GB

External memory SD card up to 128G(Optional)

Operation system (optional) Windows 10 English operate system without license

Configuration i5-2nd Generation DDR3 4GB RAM+ 120GB SSD

Smart e blackboard screen specification

Display size 82inch(16：9)

Display type LED

Active area 1805*1015 mm

Overall dimension 4200(W)*1220(H)mm

Physical resolution 1920(H)×1080(V)

color 10bit, 1.07B

Refresh rate 60HZ

Brightness 350cd/m2

Contrast ratio 4000：1(Typ.

)

Viewing angle 178°

Glass thickness 4mm tempered glass

Service life 50000 hours Smart e blackboard hardware specification

Image system PAL/SECAM/NTSC(Option)


Audio system BG /DK /I/L

Channel storage 200

Decoding 3D digital comb filter, 3D image motion noise reduction, 3D motion adaptive comb filter, etc.

Speaker 15W /8Ω× 2 Subwoofer speaker

Audio characteristic Balance, automatic volume control, surround sound, equalizer

Input port AV*1 USB 2.0 *2 VGA*1 Audio*1 YPBPR *1 LAN*2 TF card slot*1 HDMI*2 Touch USB*1 USB3.0*2

Output port AV OUT*1 Earphone*1

WIFI YES Smart e blackboard touch specification

Touch type Capacitance touch(10 points)

Writing type Finger, Writing Pen

The smallest touch body ≤2mm

Power supply system USB

Operating life Unlimited (Theoretically)

Scanning speed 10ms/frame

Punt rate 100

Driver Free drive, window automatic identification installation, no calibration required

Support OS Support Windows7/10, Android, Mac OS, Linux Smart e blackboard accessories

Blackboard 82＂ 1set

Power cable 1pcs

Instruction manual 1pcs

Warranty Card 1pcs

Remote control 1pcs
