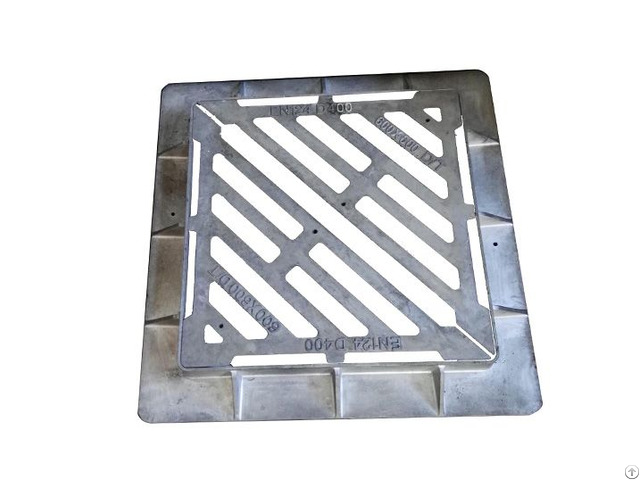

Factory Drainage Grating - China

Anti-theft Grating

Product superiority:

1Anti-theft

2Load-bearing great

3Corrosion resistant

Use: Drainage ductile iron grating are mainly used for drainage of municipal roads and general roads, factory drainage, basement drainage, general building drainage facilities and inspection well facilities.

Advantage: The tensile strength and pressure resistance of the ductile iron grating are good.

Compared with the resin composite material and the cement material, the elongation rate is much improved, and it has good pressure resistance and is not easily damaged.

factory drainage Grating superiority:

1Anti-theft

2Load-bearing great

3Corrosion resistant

4Opens conveniently

5Superior safety performance factory drainage Grating Description:

Materials: ductile iron (GGG50), grey iron (GG20)

Standard: EN124, BSEN124, UNIEN124

Load weight: B125 C250 D400 E600

Specs: according to all client's drawings

Packing: ply wooden pallet / case with plastic layer

Paint: anti-rust bituminous painting

It is widely used in the urban drainage system and road facilities.

Type: rounded, square, rectangular, double triangle, double seal

We also proide aluminum Floor Drain, cast iron parts factory china, Ductile Iron Bench Leg and soon.

Dimension:

Code Class Material Clear Opening Over Base Height Weight

Grating-04A D400 Ductile Iron 450x450 mm 530x500 mm 100 mm 50 KGS/Set

Grating-04B D400 Ductile Iron 600x600 mm 800x800 mm 75 mm 70 KGS/Set
