Cast Iron T Slotted Base Plates - China

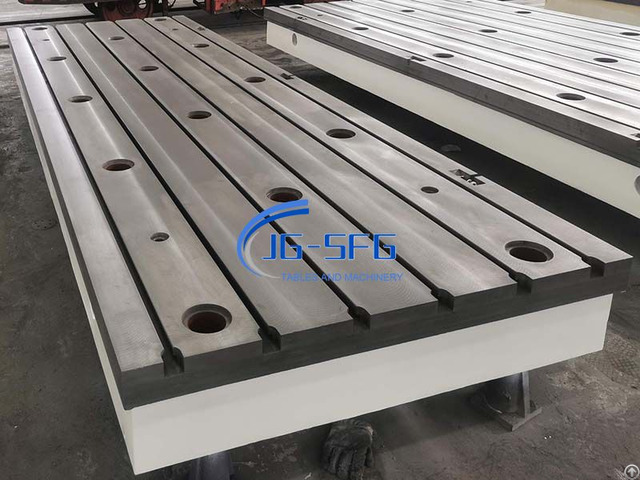

JG-SFG Cast Iron T-slotted Floor Plates is made from high-strength grey cast iron GG20-GG30 (HT200-HT300).

These plates offer flexible universal clamping possibilities for all types of work pieces.

Each clamping plate is manufactured individually according to the customer's requirements and is therefore unique.

JG-SFG plates are specially configured to suit customer requirements.

The dimensions of the floor plates can be individually adapted depending on the area of application.

This way customers can be sure that the floor plates are perfectly tailored to their needs.

The number and size of the T-slots can also be specially adapted to customers’ needs.

This ensures optimum fixing of the workpieces.

Standard plates have a Brinell hardness of between 180–200 HB and a tensile strength of 260–300 N/mm².

Surface machined to DIN876 and T-slots machined to DIN650.

Standard T-slot sizes 18, 20, 22, 28, 32 or 36 can be manufactured according to DIN 650, with fits ranging from H 7 to H 12 - The popular distance between T-slots is 200 or 250 mm.

T-slots with special dimensions are available upon request.

The number and shape of the ribs can be adjusted to suit the specified loading requirements.

The size of the T-slots in the plates is determined by the customer’s requirements in strength, tensile and compression.

JG-SFG manufacture any T-slotted floor plates size, shape and T-slot combination to your specification, in cast iron.

Nevertheless, standard floor plates are available in a large range of width and length combinations.

Floor plates can be assembled to achieve larger plate areas.

STANDARD PLATE WIDTH (in mm):

1000, 1500, 2000, 2500 and 3000 (mm) STANDARD PLATE LENGTH (in mm):

1500, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 5500, 6000, 6500, 7000, 7500, 8000 (mm)

We are professional manufacturer in cast iron plates tables  for many years, pls visit our web to know more : http: //www.

jgsfg.

com.

If any interests, pls contact Grace Chen,thank you!

Company Contact:

• Posted By: Shaanxi Fast Growth Imp.& Exp.Co.,Ltd.

• Phone: +86-29-81889938

• Address: C-12507 Shangpin International No.88 Gaoxin Road, Xi'an , Shaanxi , China

• Email:

• Website: http://www.jgsfg.com

• Business Description: JG-SFG: Shaanxi Fast Growth Imp.

  And Exp.

  Co., Ltd is the export company of Jinggong Measuring Tools Producing Co., Ltd. Specialized in manufacturing and exporting all kinds of cast iron products, especially for cast iron floor plates, cast iron surface plates, cast iron angle plates, cast iron box table and other machine tool castings, we also produce sinter pallet car and its relating parts.

  The products have the features of reasonable design, stable structure, superior quality and competitive price.

  The Cast Iron Floor Plates remains JG-SFG’s flagship product thanks to the numerous customizations according to load capacity, T-slots and application.

  The experienced engineering enables us to design the cast iron tables and angle plates according to DIN Standards and Chinese Standards, manufacture by CNC machine tools and install in the world market.

  JG-SFG completely control each production steps from mould making, casting, annealing treatments, machining, testing and packing in our own factory, could meet different customers' production requirement and delivery time.

  JG-SFG has been exporting to many countries for more than 20 years such as: Italy, Spain, Germany, France, United Kingdom, Czech Republic, Russia, United States, Canada, Mexico, Australia, Thailand etc.
