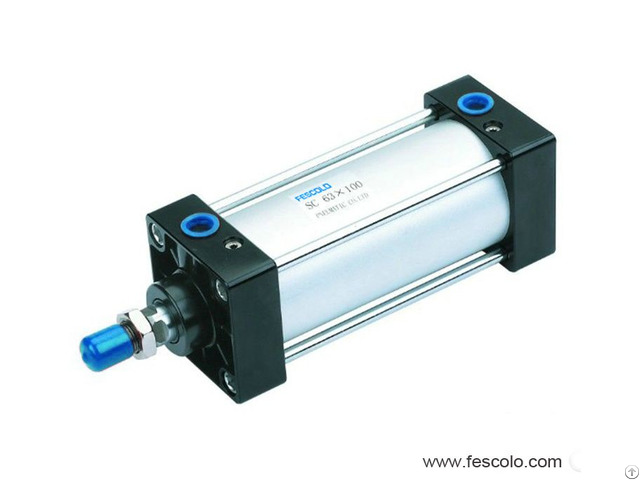

Standard Cylinder - China

Standard Cylinder

SC Series Standard Cylinder Characteristics:

1) This series of cylinder conforms to: Airtac standard.

2) There is an adjustable buffers at the terminals of the cylinder except for mounted cushion.

3) We can offer different kinds of mounting style according to standard, like Foot mounting, Front flange mounting, Rear-flange mounting, and so on.

4) Different thread type can be offered according to customers' requirements, e.

g: BSP, NPT etc.

5) Needn't lubricate on piston rod by oil.

Bore (mm) 32 40 50 63 80 100 125 160 200

Action Double Action

Applicable medium Filered Air

Pressure range 0.1~0.9 MPa

Proof pressure 1.35 MPa

Temperature range -5℃~70℃

Speed range 300~800 mm/s

Cushion style Adjustable Air Buffer

Cushion stroke 24 mm 32 mm

Port size G1/8 G1/4 G3/8 G1/2 G3/4

We can offer an impressive choice of Pneumatic Cylinder, like ISO6431 Standard Cylinder, SMC Air cylinder, MA Series Stainless Steel Mini Cylinder, Dual Rod Cylinder, Rotary Table, Magnetic Rodless Cylinder, FESTO Cylinder Guide, Compact Cylinder, Air cylinder etc.
