Ssd03 Drilling Tapping Spindle Unit Servo Feed - Taiwan

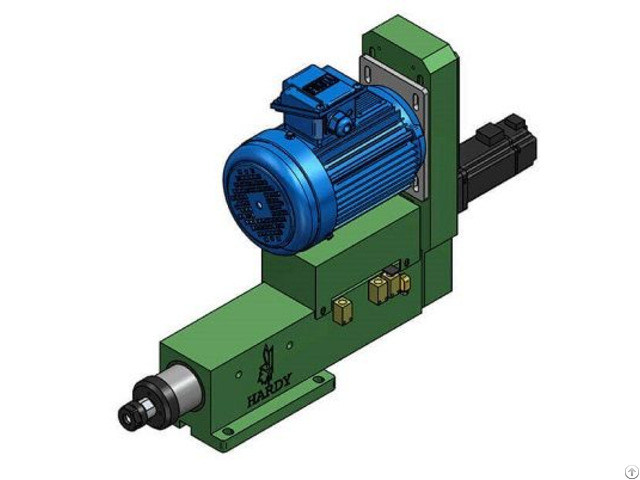

SSD03 spindle unit is designed servo feeding with ball screw grade C5 and servo motor, the accuracy of spindle nose is strictly under 0.003mm and maximum drilling capacity up to 6mm (S45C).

This unit allows to perform all types of machining applications such as drilling, tapping, chamfering, reaming and countersinking.

Feature:

1 - Standard 3-phase AC motor 0.4kW is included, optional maximum power up to 0.75kW

2 - Belt driven at fixed speed and incorporate a timing, V or Poly-V belt

3 - Feed rate is programmable and driven by preferable servo motor

4 - Feeding is driven by HIWIN or PMI Grade C5 ball screw

5 - Spindle taper ER16, JT1 and JT2 are available

6 - Available for servo driven at variable speeds

7 - OMRON proximity switch sensors and stand are furnished

8 - AC Induction Motor protection IP 54

Company Contact:

• Posted By: Hann Kuen Machinery And Hardware

• Phone: 886-4-24860602

• Address: No. 22 Liou Shun RD. , Taichung , Taiwan , Taiwan

• Email:

• Website: https://www.hardy-tw.com/

• Business Description: "HANN KUEN was found in 1985 and have extended its expertise in developing & manufacturing special purpose machine units, such as drilling head, tapping head, boring and milling head, servo driven facing head, built-in motor spindle unit, spindle with auto unclamping cylinder, servo and hydraulic slide tables.

  The distribution networks includes 200 outlets located all over Taiwan who sells to and service over 10,000 customers as well as extending to overseas markets.

  While standing firm in Taiwan with high quality products, advanced technologies, accumulated technical know-how and experience, HANN KUEN is also introducing the best machine tools from Taiwan to all advanced nations of the world.

  In order to remain competitive, HANN KUEN introduces the USA brand Brown & Sharpe 3D high-specification and German brand Mahr height measuring instrument to ensure product quality.

  Spindle bearings are implemented with SKF, NSK or TPI bearings to guarantee excellent performance and high precision in machining.

  "
