Pipe Drawing Machine Sa75b - Taiwan

Description:

1 - Motor: 75HP 2 - Applicable material: (primary) brass, aluminium, steel and alloy tube, pipe (monor) non-ferrous and steel bar

3 - Applicable size: Ø75-50mm / Ø50-35mm 4 - Working range: 10~40% Applications and features:

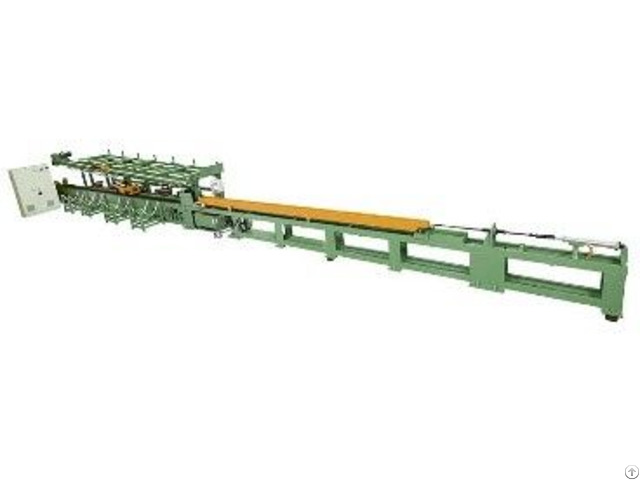

1 - Seesaw-type drawbench with the chain-driven carriage to pull out the rolled or extruded tubes for better precision.

2 - Cold drawn materials provide precise size on diameter, wall thickness, and brighter surface at room temperature.

3 - Cold drawn materials improve the hardness, reduce the duductility, and increase the yield and tensile strength of the material.

4 - With assistance from the tube pushing machine and PLC, it effectively reduces the working time on mandrel insertion and collection for cold drawn tubes.

5 - An option to make multiple dies for cold drawing on the bench to effectively increase the production capacity and improve the utilization of factory space.

6 - Pulling force, speed, and drawing length could be custom-made according to the practical process deriving from the material composition.

7 - Relevant working processes: Extrusion, cold rolling, pickling, coating, heat treatment, cutting, bending, straightening
