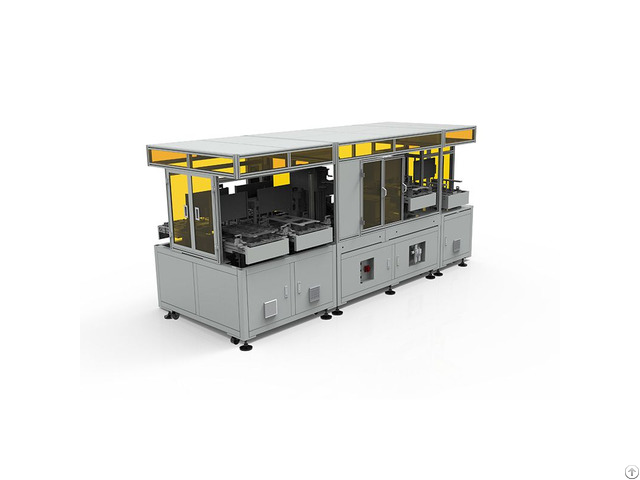

Multifunctional Automatic Glass Stress Detection Equipment - China

This multifunctional Glass Automatic Stress Detection Equipment is used to detect stress defects during chemical glass tempering process within mobile phone cover glass and back glass .

This kind of systematic automatic inspection system replaces manual inspection with higher production efficiency and lower costs, achieving one-stop operation.

It has been widely used in the quality control for phone glass panel, LCD panel and other chemically tempered glass panel .

Functions automatic picking and loading automatic scanning code automatic glass Surface Stress measurement automatic coding automatic sorting Feeding efficiency : 10s / 2 pcs Detection efficiency : 10s / 2 pcs Dimension : 3950mm(L)*1400mm(W)*1800m m(H) Weight: 3500KG Power supply : AC 220V 50HZ Rated power : <=8KW Air pressure : 0.4~0.6 mPa

Company Contact:

• Posted By: Suzhou PTC Optical Instrument Co., Ltd.

• Phone: 18012692292

• Address: No.189, Zhangji Road , Kunshan city , Suzhou , Jiangsu , China

• Email:

• Website: https://www.ptc-stress.com

• Business Description:

  PTC is an innovative high-tech company based in China .

  In about 20 years , we have been helping users to reach their goals of better quality .

  Two aspects of solutions are practiced to be cost-saving by our extensive customers .

  In the section of stress measurement , not only do we provide affordable strain viewers but we also supply high-resolution computerized Polariscope .

  Glass , Crystal , acrylic, PET and many more transparent materials are detectable .

  In the section of visual inspection , we develop, produce and market optical inspection systems for automated quality assurance of many materials , such as glass , PCB, metal , plastics , packaging, medical and many more .

  Using optic detection and machine vision as the core technologies , these automatic inspection systems replace traditional manual visual inspection and greatly help clients to solve producing and quality problems .
