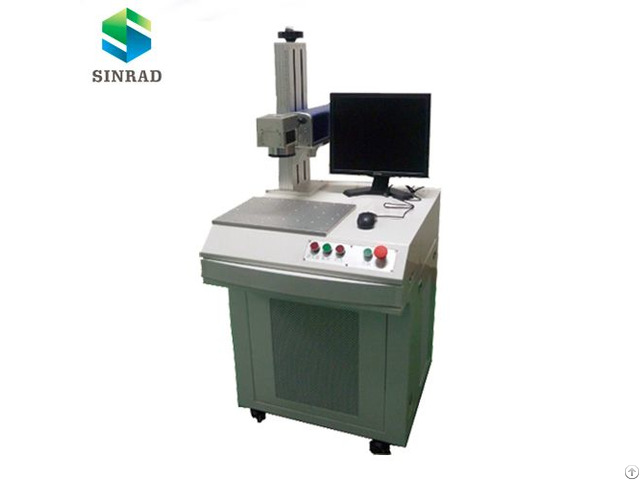

Laser Marking Machine For Print Logo Content On Products - China
price: 6000.00 Dollar US$
Technical Parameters of Fiber Laser Marking Machine (portable MINI size)
Power: 10W / 20W / 30W / 50W
Laser Wavelength: 1064nm
Marking Area: 200mm*200mm
Optional Marking Area: 50*50mm 500*500mm
Marking Depth: 0.3mm / 0.4mm / 0.5mm / 1.0mm
Marking Speed: 7000mm/s
Minimum Line Width: 0.012mm
Minimum Character: 0.12mm / 0.15mm / 0.17mm / 0.17mm
Repeated Precision : ±0.003mm
Controller Card: Software--EzCad / SAMlight
Life-span of Fiber Laser Module: 100 000 hours
Beam Quality: <1.5 m2
Focus Spot Diameter: <0.01mm
Power Stability (8h) : <±1.5%rms
System Operation Environment: Windows XP / Windows 7 / 8 / 10
Cooling Mode: Air cooling
Voltage: 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH
Power Requirement: <500W
Computer Requested: There will be one PC with the machine
Features
Features of Outside Ring Laser Marking Machine
1 - high-definition: the resolution is measured by micron; It is two times clearer than traditional machine.
2 - Less power consumption: occupy traditional consumption of one and two-fifths to one and ten.
3 - high-speed: the speed is three to five times faster than traditional machine.
4 - stability: the stability of machine is much better than similar counterpart.
5 - long life: its lifespan is ten times longer than traditional machine.
Company Contact:
- Posted By: Sinrad Technology Co., Ltd
- Phone: 13632812687
- Address: bao'an , shenzhen , guangdong , China
- Email:
- Website: http://www.usbsolderingmachine.com
Published date: September 5, 2016
- Business Description: Sinrad Technology Co., Ltd, specialized in automatic machine, automatic soldering machine, automatic wire winding machine, automatic laser welding machine, laser marking machine, laser engraving machines, universal cable/ harness tester, professional laboratory equipment, and other production equipments.
