High Quality Drum Gear Couplings - China

Applications for HUADING high-quality gear couplings are numerous.

Continuous and Flanged Sleeve Gear Couplings are commonly used to solve problems with extended shaft ends, mill motors, and limited end float.

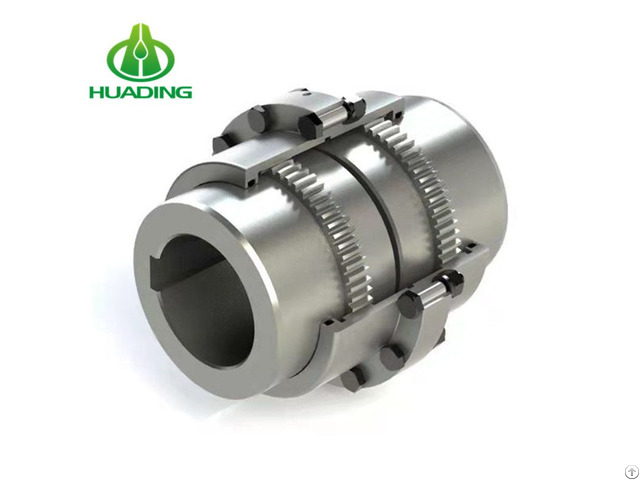

Drum Gear Couplings Description

Gear couplings are used to provide a mechanical connection between the rotating shafts of mechanical equipment, solving inherent misalignment problems while transmitting power and torque between the connected shafts.

To increase coupling life, the shafts should be aligned to minimize deflection of the bending elements.

Mounting requires shaft alignment in axial, parallel, and angular directions, each of which must not exceed the recommended mounting limits.

Advantage:

1 - Low life-cycle costs and long service life;

2 - Increase productivity；

3 - Professional and innovative solutions；

4 - Reduce carbon dioxide emissions; Drum Gear Coupling

· Model: GⅡCLZ Type

· Norminal Torque: 0.4kN.

M - 4500kN.

M

· Allowed Rotation Sppeed: 4000rpm - 460rpm

· Connection: Keyway & Shaft hole

· Shaft Hole Diameter: 16mm - 1040mm

· Shaft Hole Length (Y): 42mm - 1000mm

· Applications: Metallurgy, mining, lifting and transportation industries, petroleum, chemical, general machinery and other heavy machinery shaft drive.

Drum type Gear Coupling Features:

1 - High carrying capacity

The bearing capacity of the drum gear coupling is 15 to 20% higher than that of the straight-type coupling in the same outer diameter and the maximum outer diameter of the coupling.

2 - Large angular displacement compensation

When the radial displacement is equal to zero, the allowable angular displacement of the straight-tooth coupling is 1°, but the allowable angular displacement of the drum gear-type coupling is 1°30", 50% increased.

With the same modulus, tooth number, and tooth width, the allowable angular displacement of the drum teeth is larger than that of the straight teeth.

3 - Drum gear coupling has improved the internal and external contact conditions, which avoids the drawbacks of angular displacement of the mandibular tooth edge extrusion and stress concentration, in the meanwhile improving the tooth surface friction, wear conditions, reducing noise, and long maintenance cycle.

4 - The tooth end of the outer teeth set is horn shape so that the internal and external tooth assembly and disassembly are very convenient.

5 - Transmission efficiency is up to 99.7%.
