High Quality 1 5v 10mm Dc Plastic Gear Motor For Lock From Kegumotor - China

Product Description

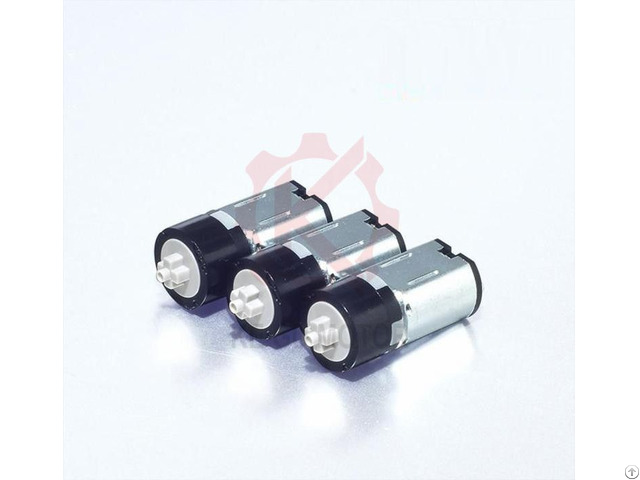

10mm plastic gearbox with M10 micro dc motor

M10 DC motor plastic gear 12v electric motor for door-lock Volt

2.5v

No Load Speed

104rpm

Rated Speed

56rpm

Rated Torque

150g.

cm

Application

Robot, door lock, toy, cabinet lock SPECIFICATION: 1 - Voltage: DC 1.5V

2 - No load speed: 45±10%rpm

3 - No load current: 0.032A

4 - Diameter 10mm, length 20mm, shaft dia 1.5mm

5 - Material: plastic gear and metal DC motor

6 - Weight: 10g Approx

7 - Application: Robot, Bike lock, Home Appliance, Door Lock etc

8 - Customized, Adjust the performance at free(voltage, speed, torque)

Kegu Motor Provide intelligent lock solution Special imported steel for gear material, minimum modulus (0.15 mode), ultra-low noise, high reliability.

The motor adopts high

anti-oxidation commutator and brush material, which has

the characteristics of smooth operation, long life and small vibration.

* High Torque * Low Noise * Longer life time up to 200, 000 times unlock Detailed Images

This series of motors are used in intelligent switch, smart door lock, fingerprint lock driver.

The control system of various locks and fingerprint lock can be controlled by mobile APP.

Size Information

Drawing of 10mm gear motor Full range of precision gearbox, diameters 6mm, 8mm, 10mm, 12mm, 13mm, 16mm, 20mm, 22mm, 24mm, 28mm, 32mm, 36mm, 37mm, 42mm, 48mm, output speed 5-3000rpm, reduction ratio 5-1500, output torque 1g.

cm to 50kg.

cm

Company Contact:

• Posted By: Shen Zhen Ke Gu technology Co.,Ltd

• Phone: +8618682260827

• Address: T2 High-Tech park, No.22 South 7th Road Yue Hai, Nan Shan District, Shen Zhen, Shenzhen , Guangdong , China

• Email:

• Website: https://www.kegumotor.com

• Business Description: Shen Zhen Ke Gu Technology Co.,Ltd, it is a high-tech private enterprise integrating research, development, production and sales of various types of miniature DC motors, precision gearbox, micro transmission of system.

  We also provide the drive solutions for customers from design, components manufacturing and assembly.

  The company strictly implements the IS9001: 2015 management system.

  Products are widely used in automotive,communications equipment,smart home,medical equipment, intelligent security,household appliances,western kitchen equipment,machinery and electronics and other high-end transmission structures,products are exported to more than 50 countries and regions at home and abroad.

  We provide motor driving solutions and services for the worlds most famous intelligent door lock enterprises on a long-term basis.

  Our motors have a service life up to more than 500,000 times; the service life of a battery unit is more than 150,000 times.

  Advanced technologies and rich experience have secured our leadership in the industry of electronic locks.
