Flatbed Die Cutting Machine - China

Flatbed die cutting machine

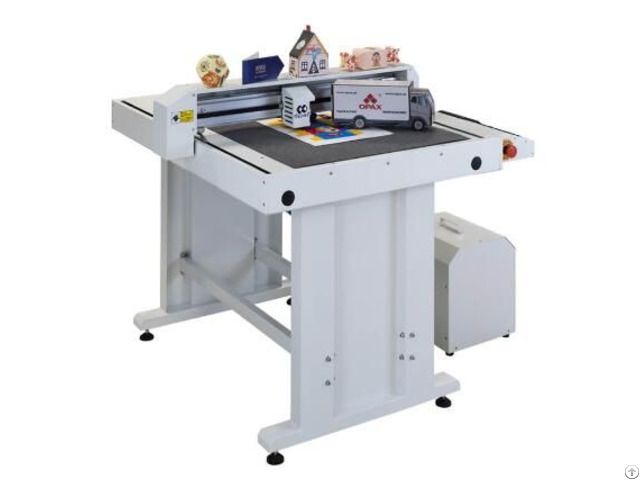

The VICUT MFC Series flatbed cutter plotter including DragonCut Pro software is ideal for small and medium-sized production and samples of packaging, swing tickets and even labels.

Processing materials include paper, card, synthetics, films and kinds of labels, up to 500gsm.

Using advanced digital contour cutting technology, the Flatbed Cutter follows artwork cut lines drawn in Adobe® Illustrator® or CorelDRAW®, no cutting dies required, the sheets are produced to any shape, instantly and directly from the desktop.

The flatbed digital cutter can handle full cutting, half cutting, creasing and even drawing.

Two models are available; the desktop MFC4560 flatbed plotter offers maximum cutting area up to 450x600mm, ideal for 2 or more sheets side by side, while free-standing MFC6090 cutting plotter flatbed offers a larger cutting area 600x900mm, enabling users to cut either larger sheets or to batch more sheets next to each other for increased productivity.

mini flatbed cutter plotter Main Features:

1 - Plug and play, simple installation, no additional drivers needed.

2 - Direct USB makes the flatbed cutter reliable and convenient.

3 - Advanced digital contour cutting technology- high resolution optical sensor read barcode on the printed files automatically.

No cutting dies required.

4 - Pneumatic vacuum suction of media.

5 - Dual cutting head, cutting and creasing in one compact unit.

6 - Silent, precise and powerful servo drivers for best cutting results.

7 - Contour cutter cuts thin films and card up to 500gsm / 600micron.

8 - Cuts typical SRA3 sheet in 30-60 seconds.

Flatbed cutter plotter machine Application:

Field: prototype and light production, DIY paper crafts, on-demand packaging and sheet card cutting system – also suitable for sheet labels.

Materials: cardboard, craft paper, plastic board, fibrous cardboard, rubber sheet, vinyl, sticker, reflective film and thin film etc.

PVC: less than 0.4mm

Sandblast, Hard paper: less than 450gsm

Magnetic Sticker: less than 600micron

PET: less than 0.3mm, etc.

Our flatbed cutting machine has the same function with creasing and cutting machine, cardboard die cutting machine, card cutter, pizza box machine, pattern cutting machine, cutter paper machine, and sticker cutting machine etc.

WILLIAM CNC TECHNOLOGY is a Chinese manufacturer of digital flatbed cutter, label cutter, card cutter, trimmer and cutting plotter, having its own R&D center, production base, QC department, and global sales&service branch.

Our brand VICUT registered in 2013 focuses on overseas market, to provide users post-press cutting machines with an affordable solution without sacrificing options or function.
